Stone Jaw Crusher Machine for Crushing Stone Limestion

Jaw crusher could crush kinds of minerals and rocks with compression strength less than 320MPa,such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc

Product Details

Jaw crusher Product Overview

Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction, water conservation and chemical industry etc.

It could crush kinds of minerals and rocks with compression strength less than 320MPa,such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore,

copper ore, gold ore etc. Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher.


Jaw crusher Product Features

①simple structure and low price

②convenient for transmission.

③no need to worry about power off.

④ Discharging size of jaw crusher can be adjusted to meet the requirements of different users;

⑤Diesel engine jaw crusher is easy

to install, operate and maintain.

⑥Every feature has been carefully designed to provide superior quality and performance.

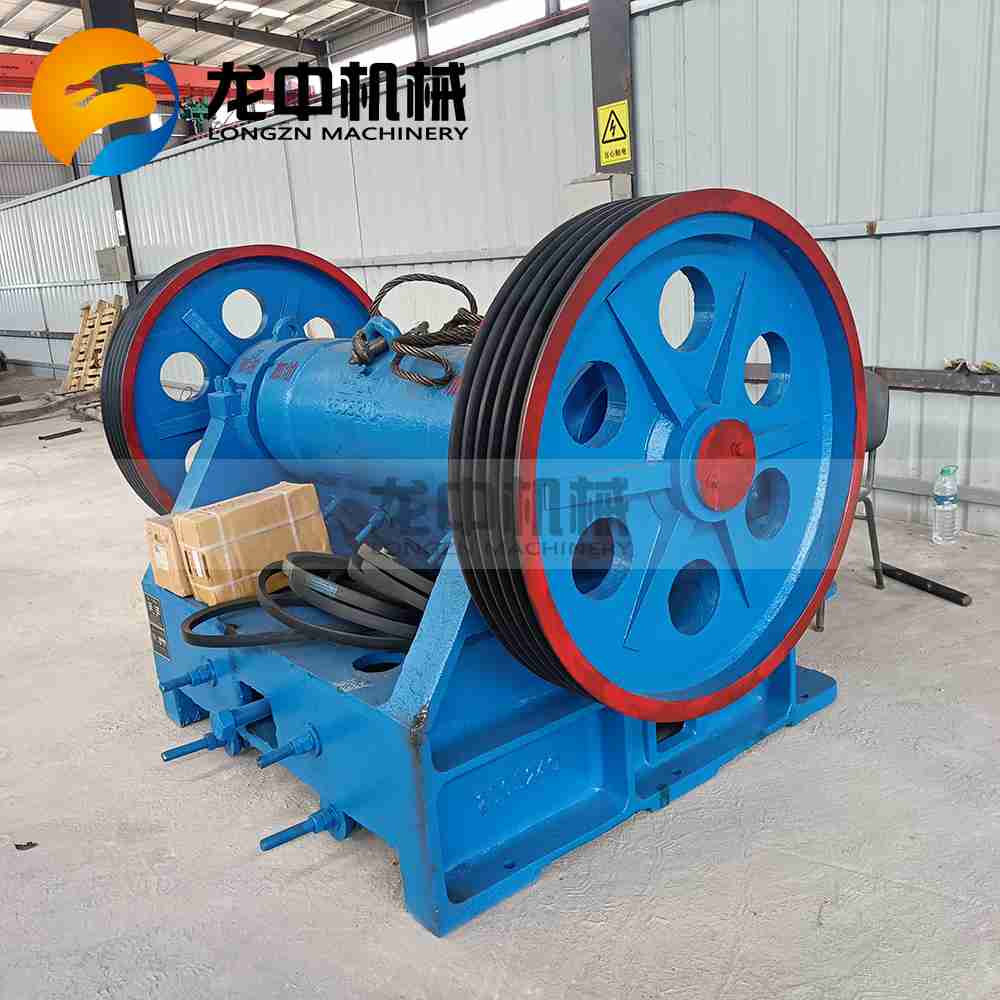

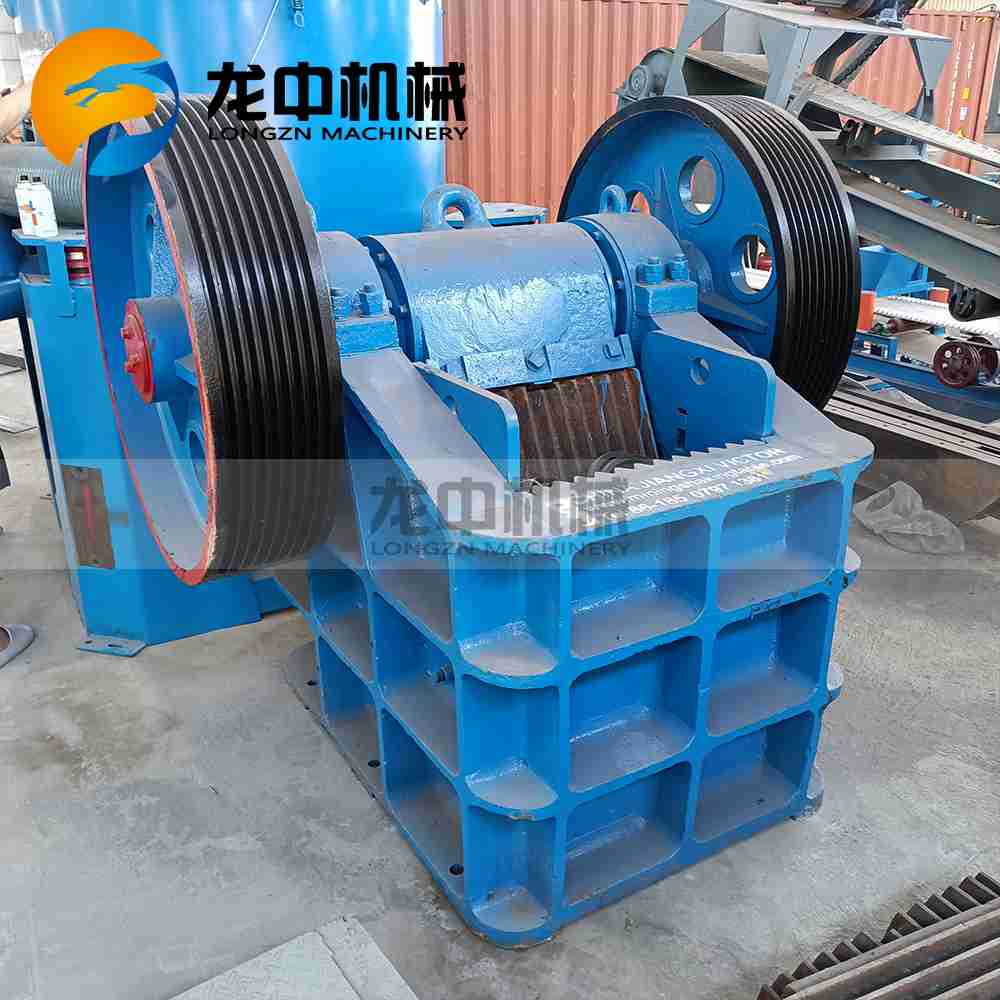

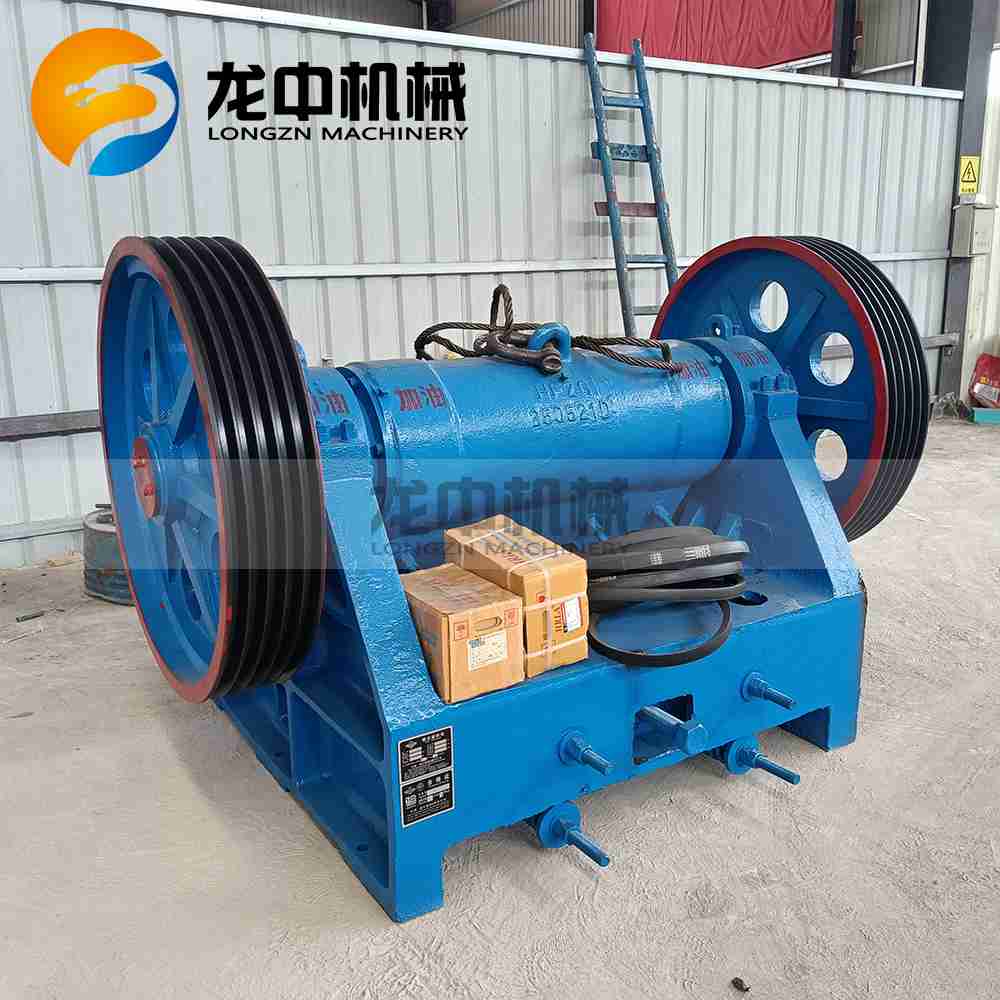

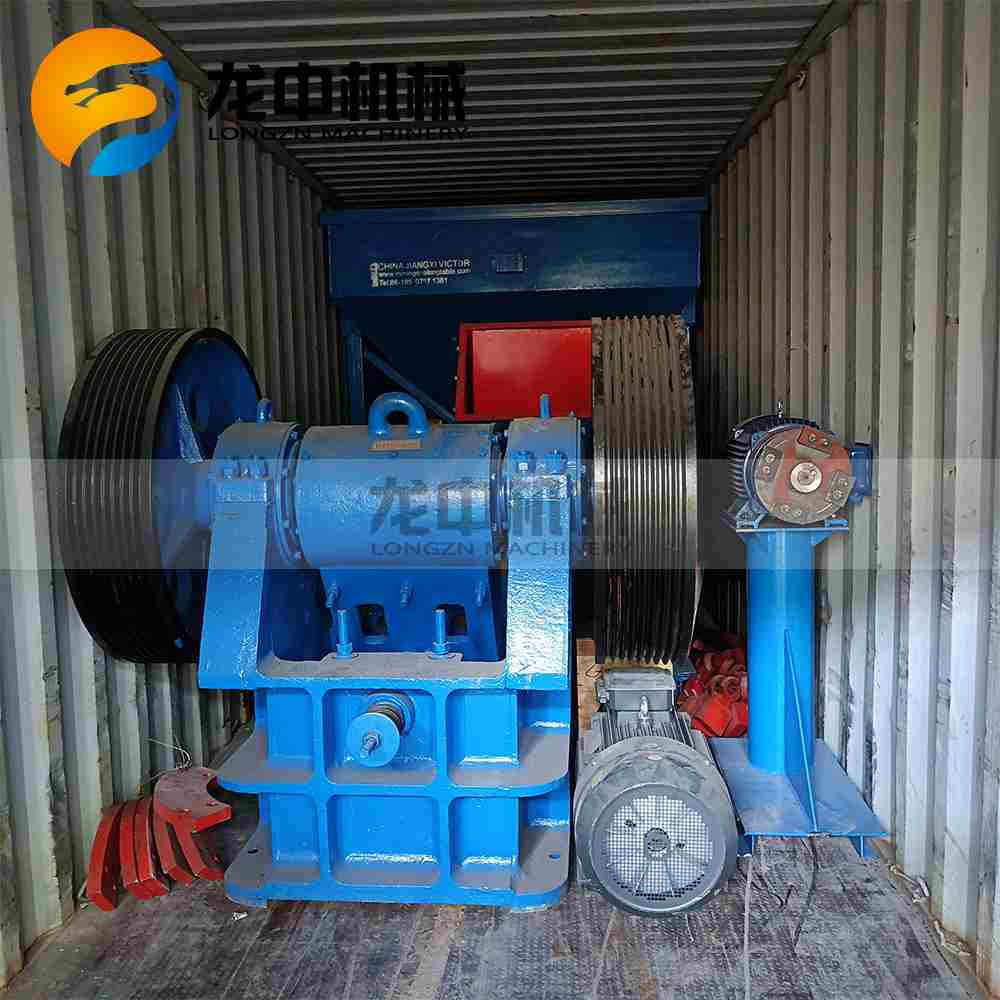

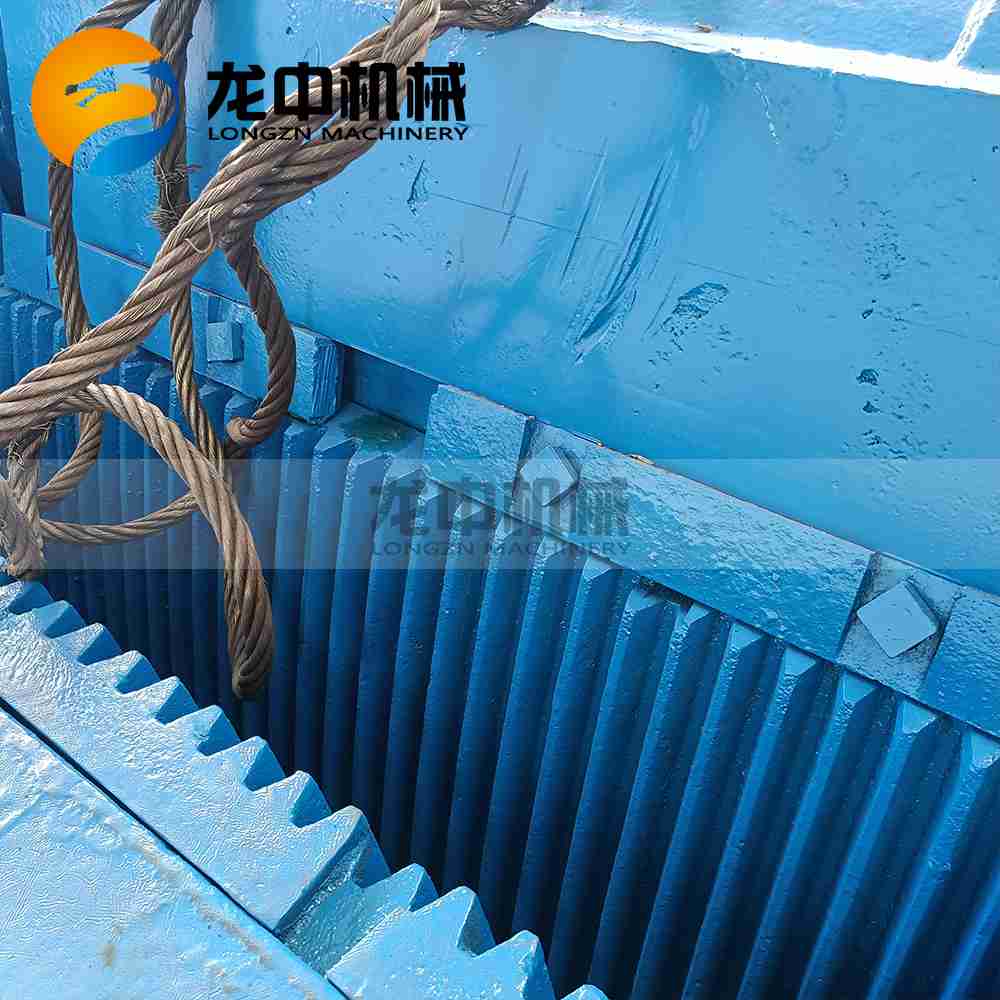

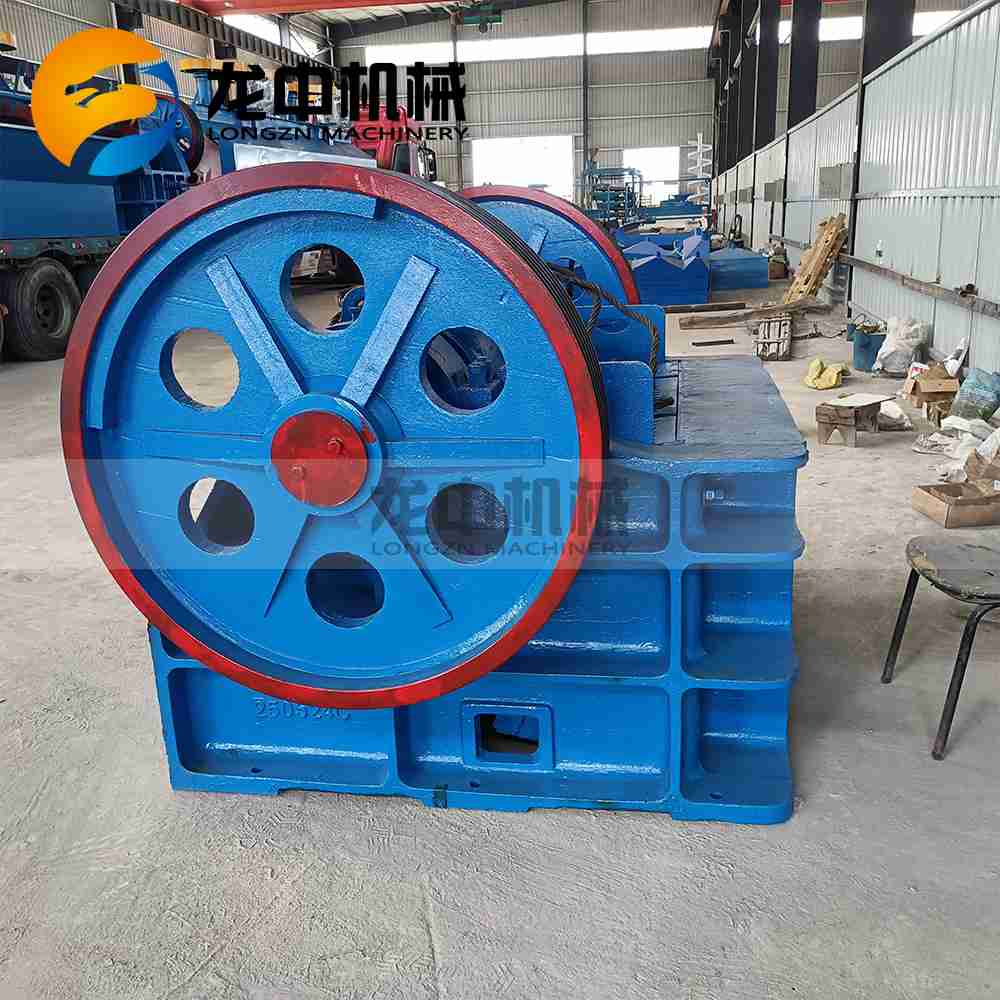

Jaw crusher Product Pictures






Jaw Crusher Main Technical Parameters

Model

Feed Opening

(mm)

Max.Feeding Size

(mm)

Capacity

(t/h)

Motor Power

(kw)

Weight

(t)

Dimensions

(mm)

PE-150*250

150*250

125

1-5

5.5

0.8

950*1100*1100

PE-200*300

200*300

180

2-10

7.5

1.2

1400*900*1200

PE-250*400

250*400

210

4-15

15

2.8

1450*1350*1500

PE-400*600

400*600

350

5-22

30

7

1700*1800*1650

PE-500*750

500*750

425

43-102

55

10.6

2270*2370*2145

PE-600*900

600*900

500

51-180

75

16.5

3000*2500*2600

PE-750*1060

750*1060

630

80-195

110

29

2526*2410*2780

PE-900*1200

900*1200

780

140-270

132

52

2960*2760*3530

PE-1000*1200

1000*1200

850

190-310

132

55

3889*2826*3025

PE-1200*1500

1200*1500

1020

260-510

180

100.9

4930*3548*3702

PEX-150*750

150*750

120

8.5-28

18.5

3.8

1300*1750*1200

PEX-200*750

250*750

210

15-35

22

5.5

1400*1750*1400

PEX-250*1000

250*1000

210

20-65

37

7

1400*1980*1440

PEX-250*1200

250*1200

210

20-75

45

8.5

1400*2180*1440

PEX-300*1300

300*1300

250

30-105

70

11

1560*2350*1600
