Wet Pan Mill Product Overview
Wet grinding machine is mainly used for separation of gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and other minerals selected. We have Diameter 850, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600 for your choice. Generally speaking, from 850 to 1200 model is used for gold grinding. Larger size from 1300 to 1600 model is used for iron ore, molybdenum ore, lead ore, zinc ore, antimony ore and so on.

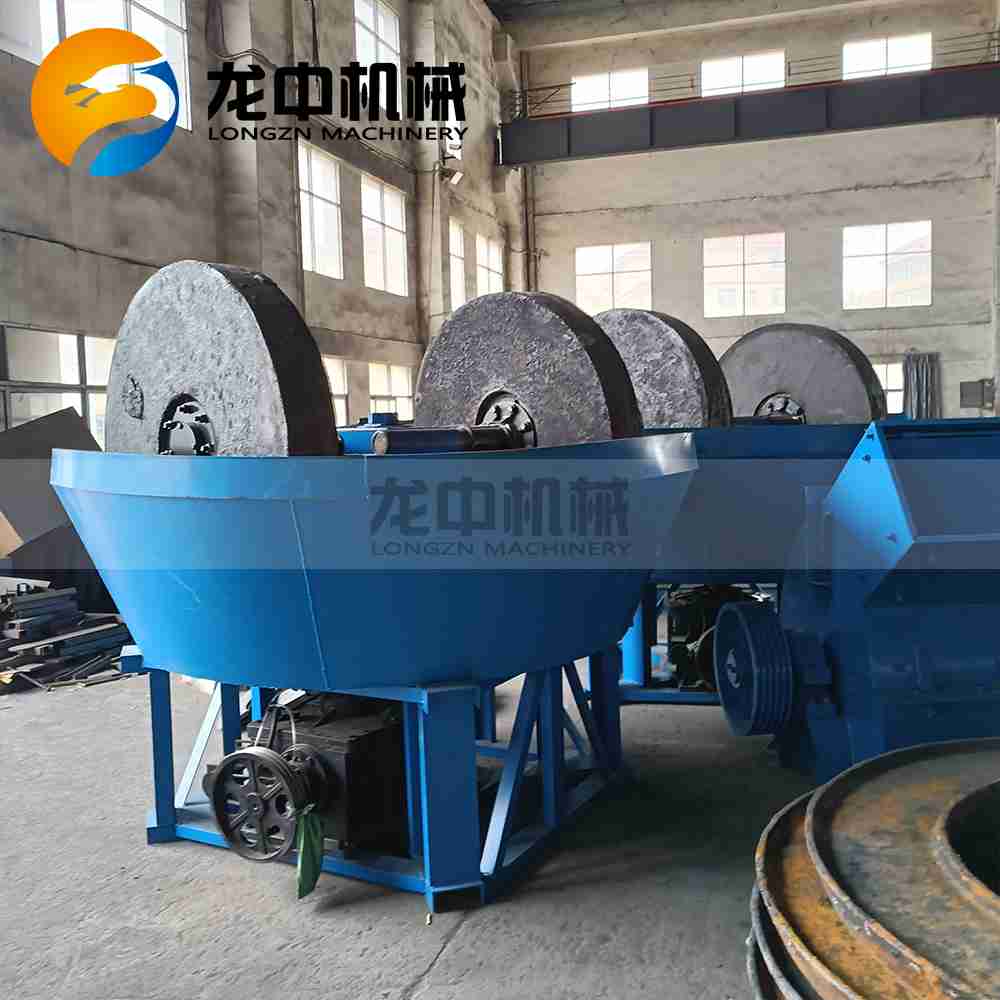

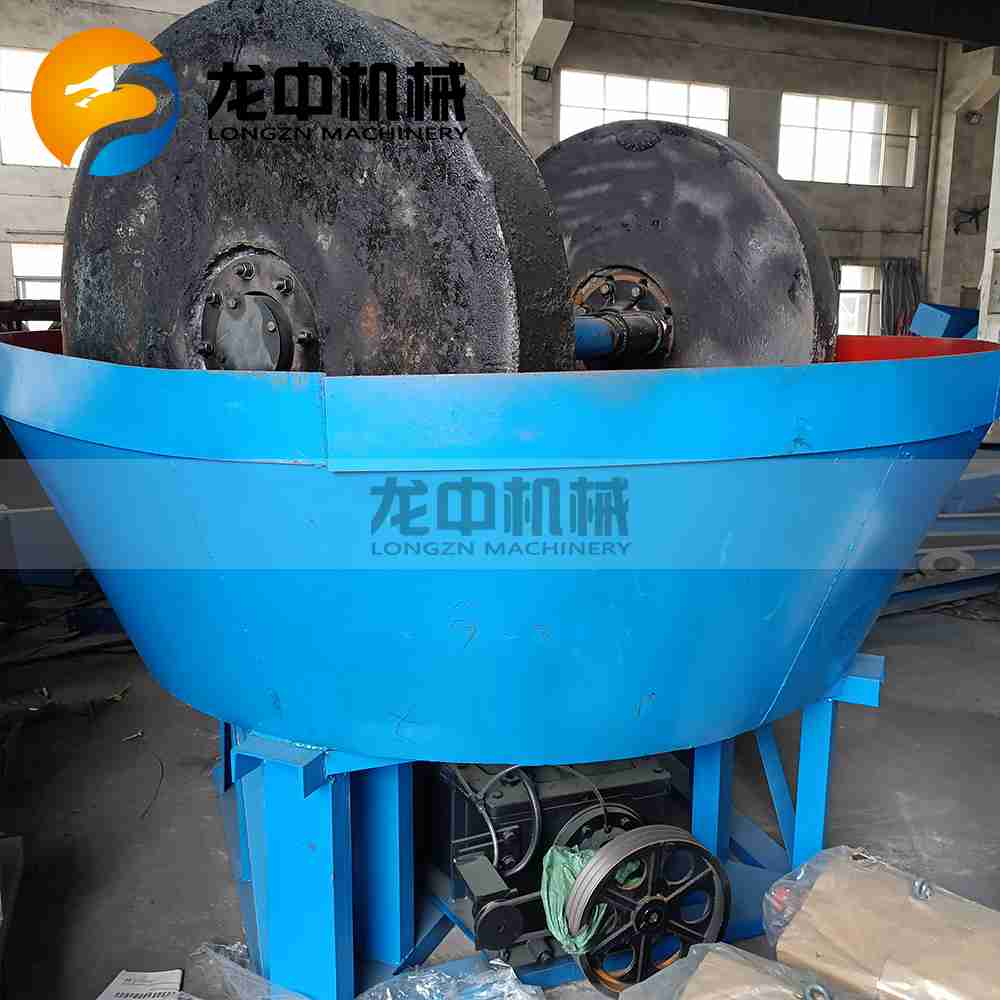

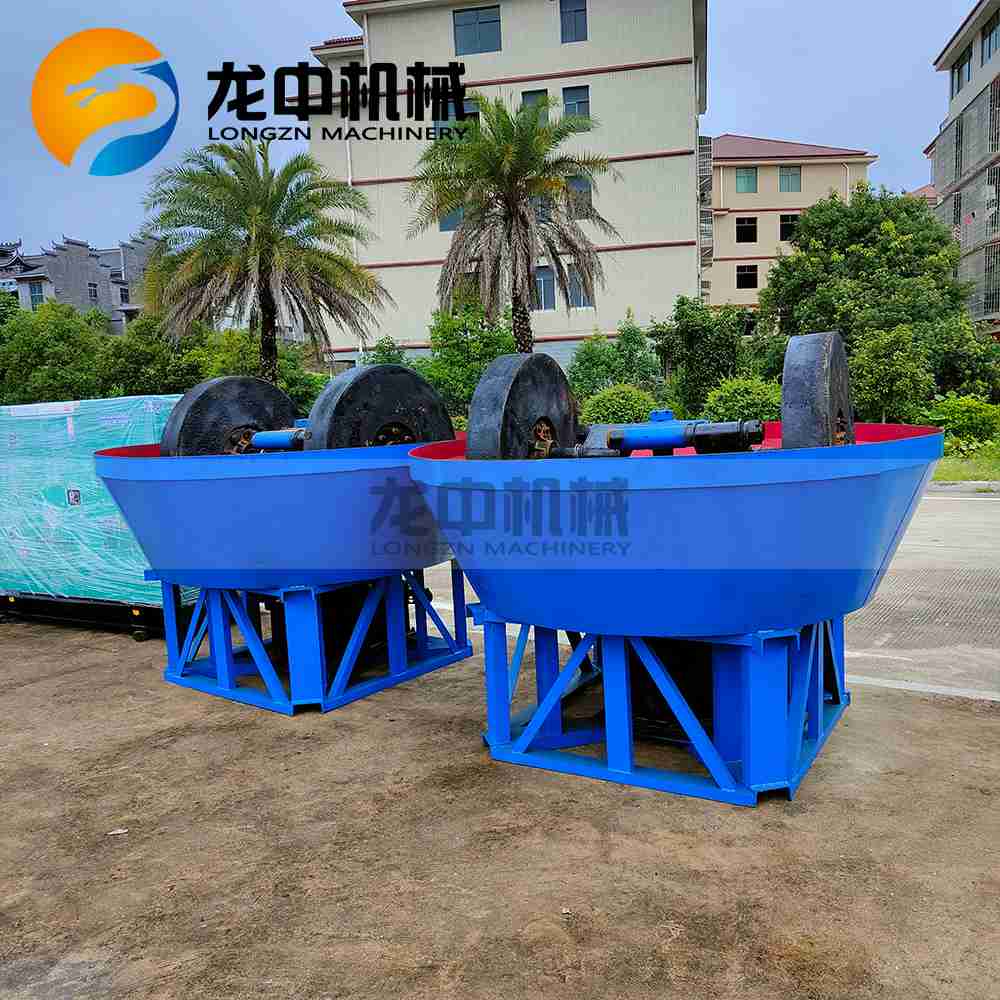

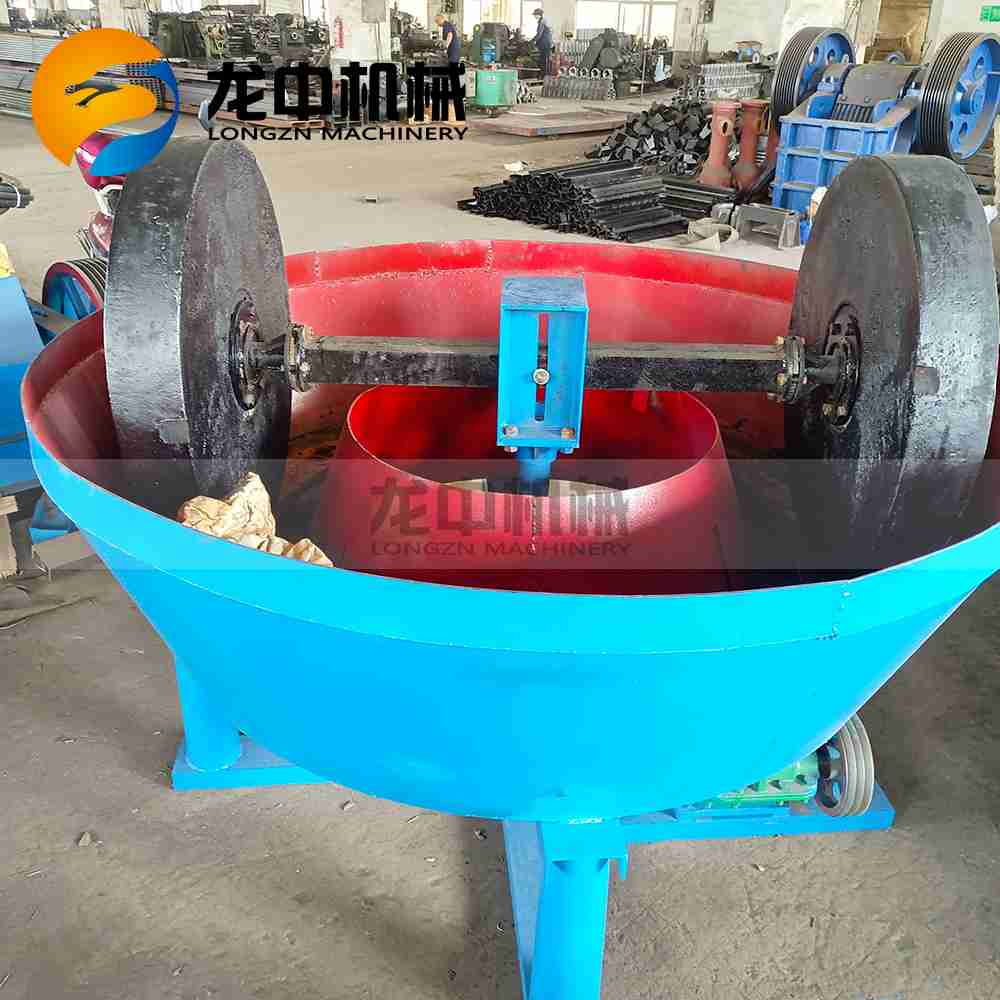

Wet Pan Mill Product Pictures
Wet Pan Mill Main Technical Parameters
Model | Grinding Roller Diameter(mm) | Thickness of Grinding Roller(mm) | Grinding Pan Diameter(mm) | Thickness of Grinding Pan(mm) | Width of Grinding Pan(mm) | Speed(r/min) | Power(kw) | Capacity(t/h) | Weight(t) |
WKD-1600 | 1600±20 | 400±20 | 2100±20 | 180±20 | 500 | 20-22 | 30 | 9-10 | 16 |
WKD-1500 | 1500±20 | 300±20 | 2000±20 | 150±20 | 450 | 20-22 | 22 | 7-8 | 12 |
WKD-1400 | 1400±20 | 250±20 | 2000±20 | 150±20 | 360 | 16-18 | 15 | 5-6 | 9.5 |
WKD-1300 | 1300±20 | 250±20 | 2000±20 | 150±20 | 360 | 16-18 | 11 | 3-4 | 8 |
WKD-1200I | 1200±20 | 220±20 | 1800±20 | 100±20 | 270 | 13-18 | 7.5 | 1-2 | 6 |
WKD120II | 1200±20 | 200±20 | 1800±20 | 100±20 | 250 | 13-18 | 7.5 | 0.8-1 | 5 |
WKD-1100 | 1100±20 | 200±20 | 1800±20 | 80±20 | 250 | 13-18 | 5.5 | 0.5-0.8 | 4.5 |
WKD-1000 | 1000±20 | 200±20 | 1800±30 | 80±20 | 250 | 13-18 | 5.5 | 0.3-0.5 | 4 |
WKD-900 | 900±20 | 160±20 | 1700±30 | 50±20 | 200 | 13-18 | 3 | 0.2-0.3 | 3 |
WKD-800 | 800±20 | 140±20 | 1700±30 | 50±20 | 180 | 13-18 | 3 | 0.1-0.2 | 2.5 |
