Wet Drum Magnetic Separator Gold Mining Equipment

Wet Magnetic Separator Product Overview

Drum magnet separator is requisite equipment for concentration plant of iron mine, of which the performance and steadiness plays

a vital part in the economic benefit of iron mine. Wet drum separator has always classified by granularity of feeding material.

While in practical manufacture, the required performance is different for drum separator of the same style from one procedure to another.

A long term research in different performances required by different procedure, we developed drum separator specially for different procedure.

Wet Magnetic Separator Working Principle

When materials go through the permanent magnetic drum, the magnetic particles are absorbed to the drum surface and discharged through

the magnetic product area. Meanwhile, the non-magnetic particles are ejected from the drum surface under the influence of the centrifugal

force and gravitation and discharged through the non-magnetic product area.

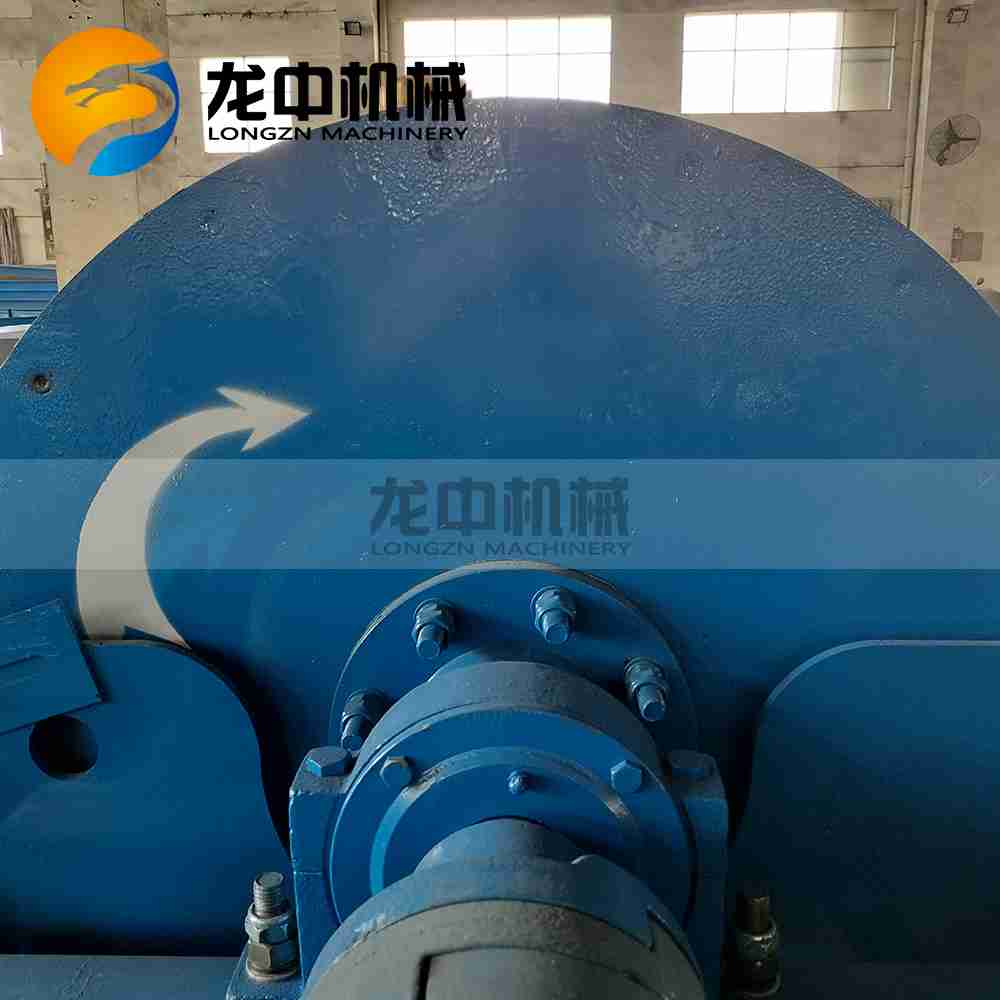

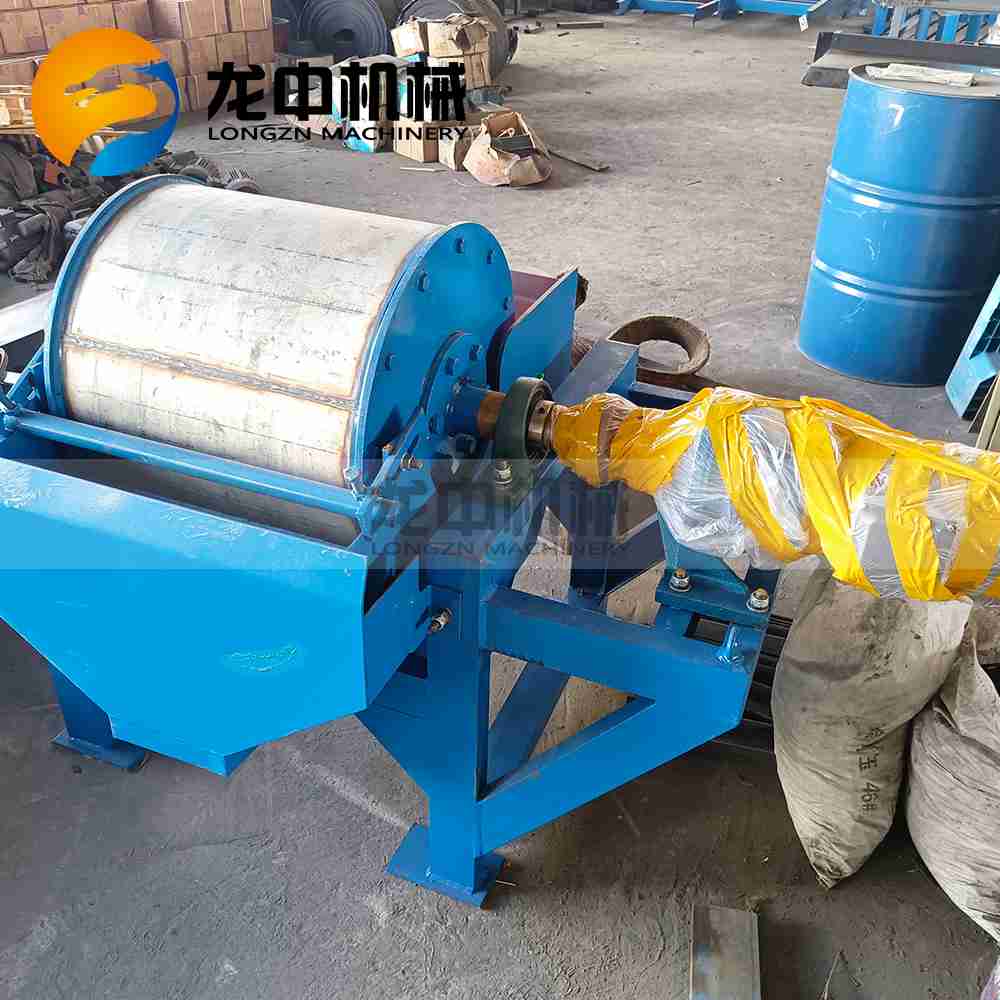

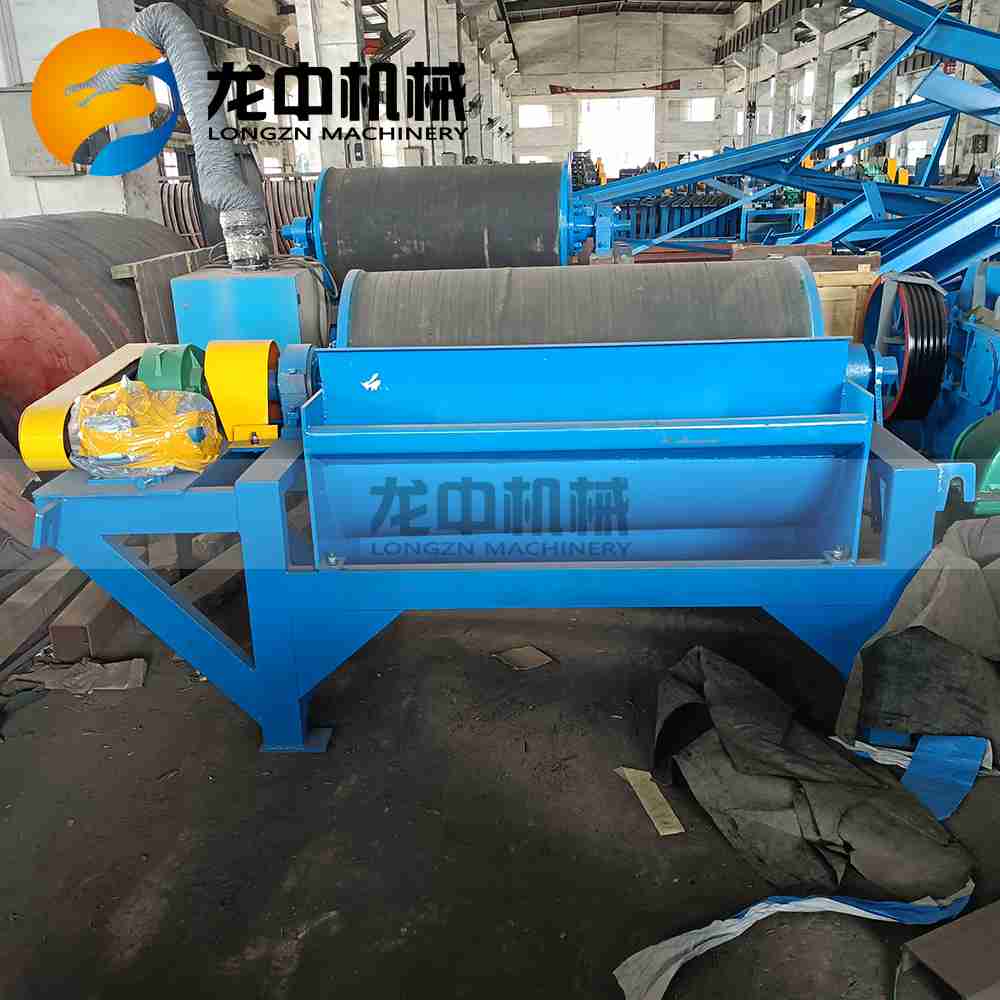

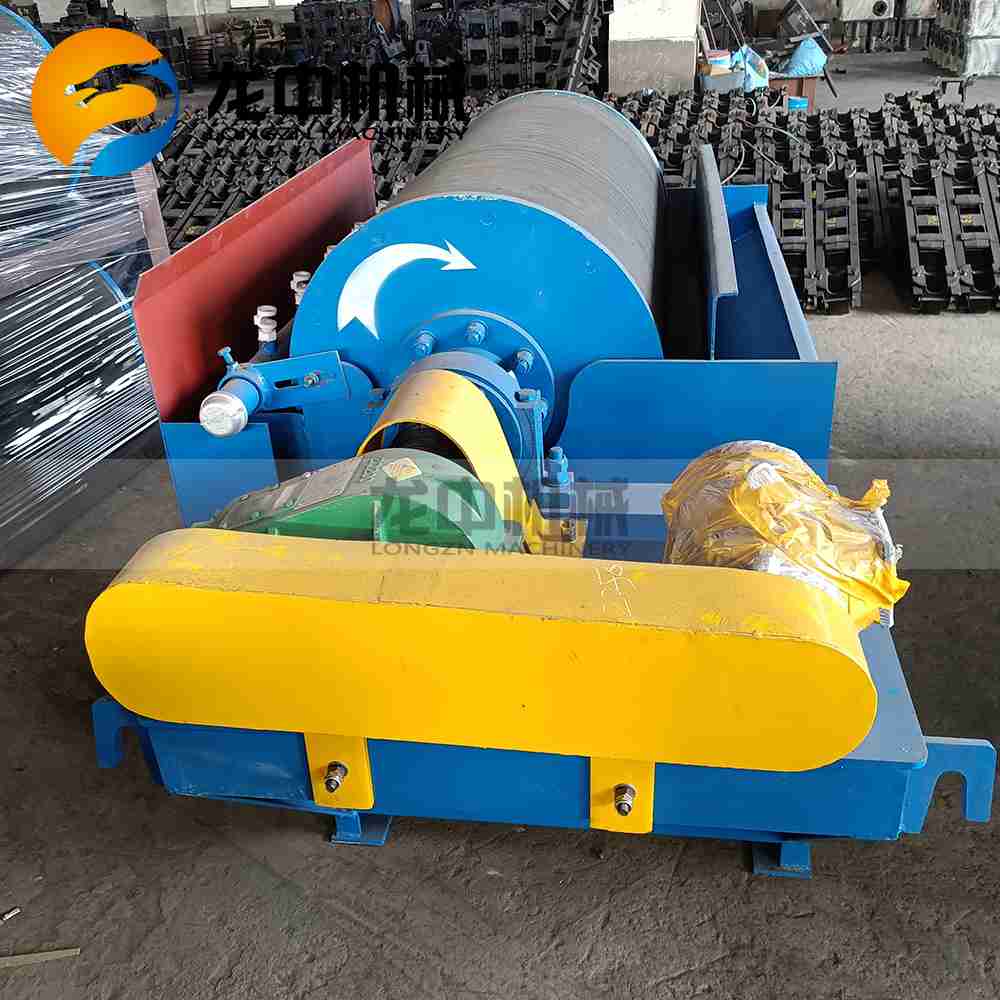

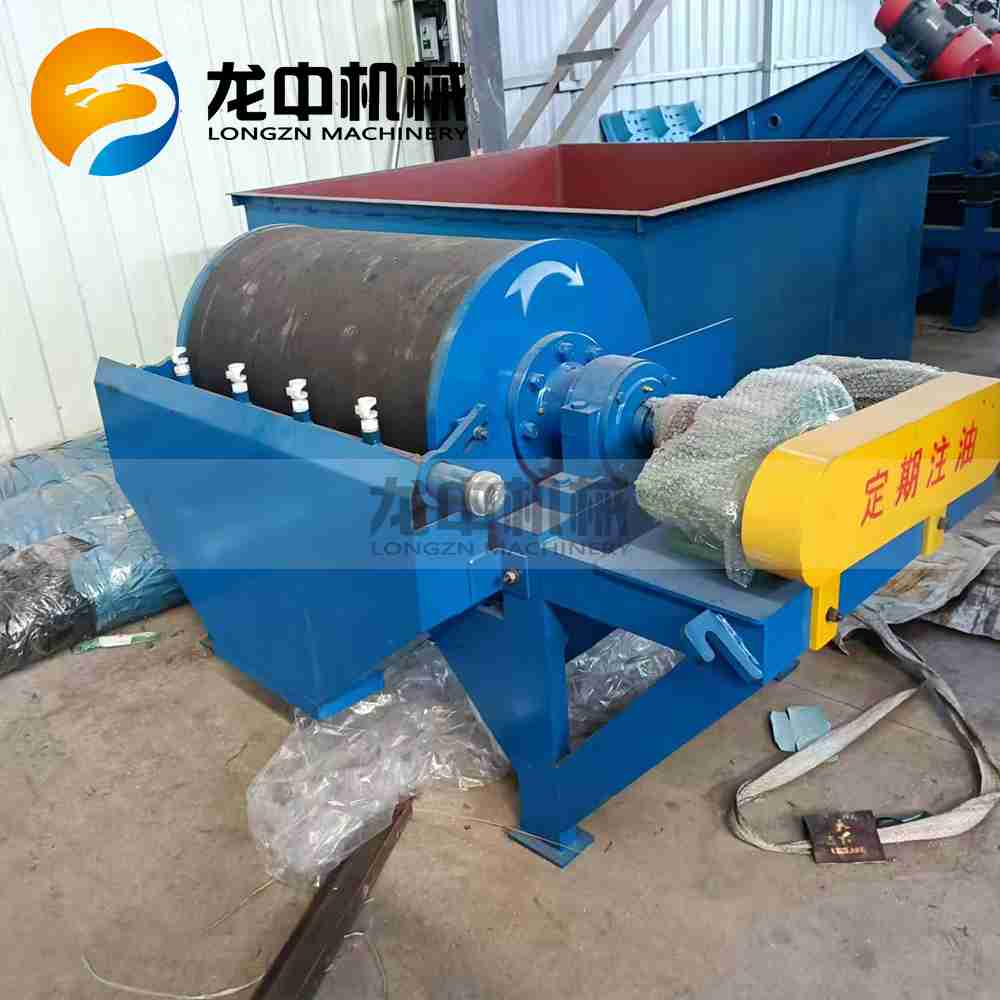

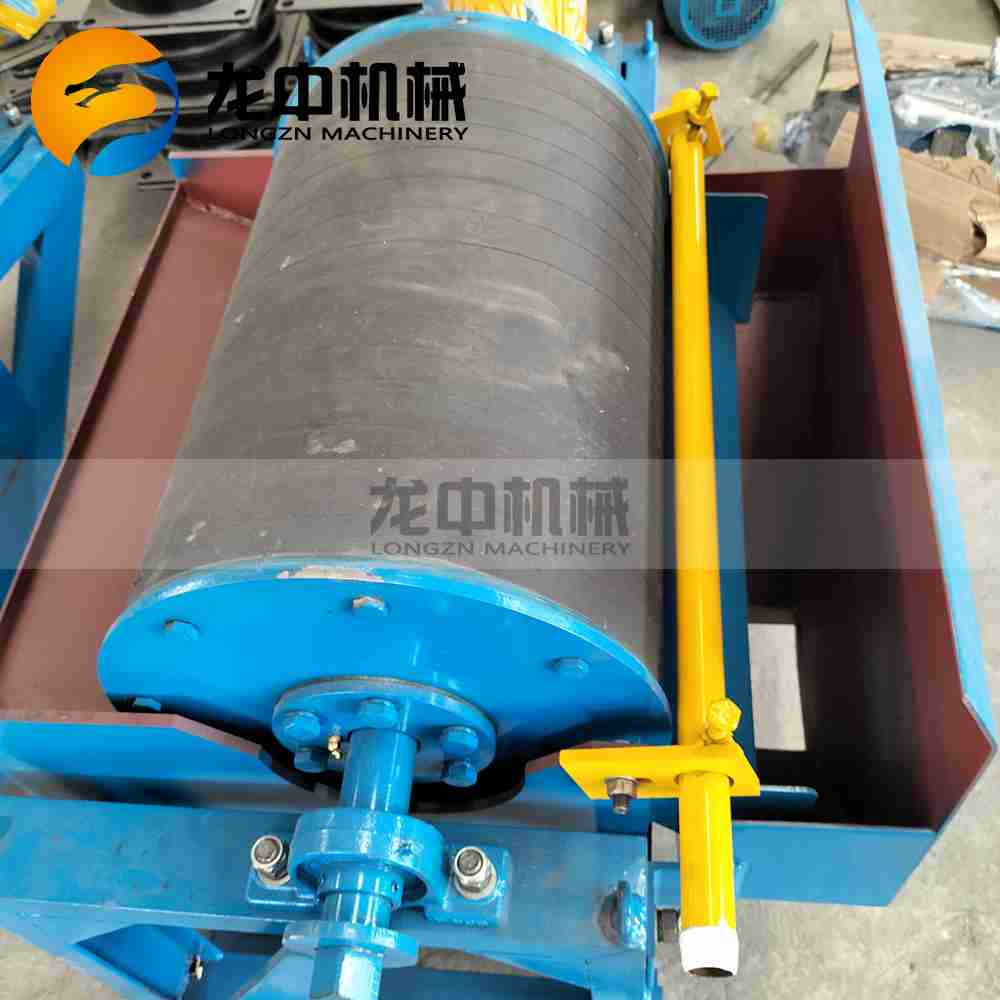

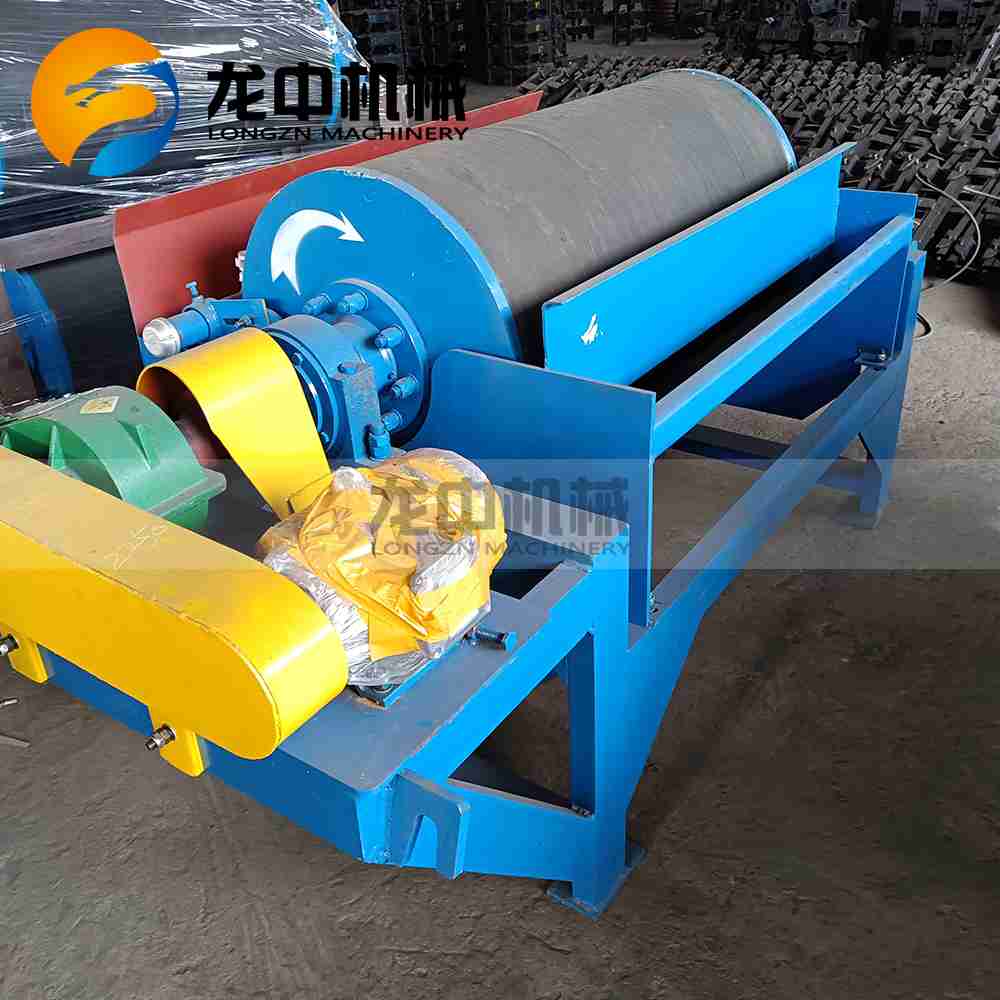

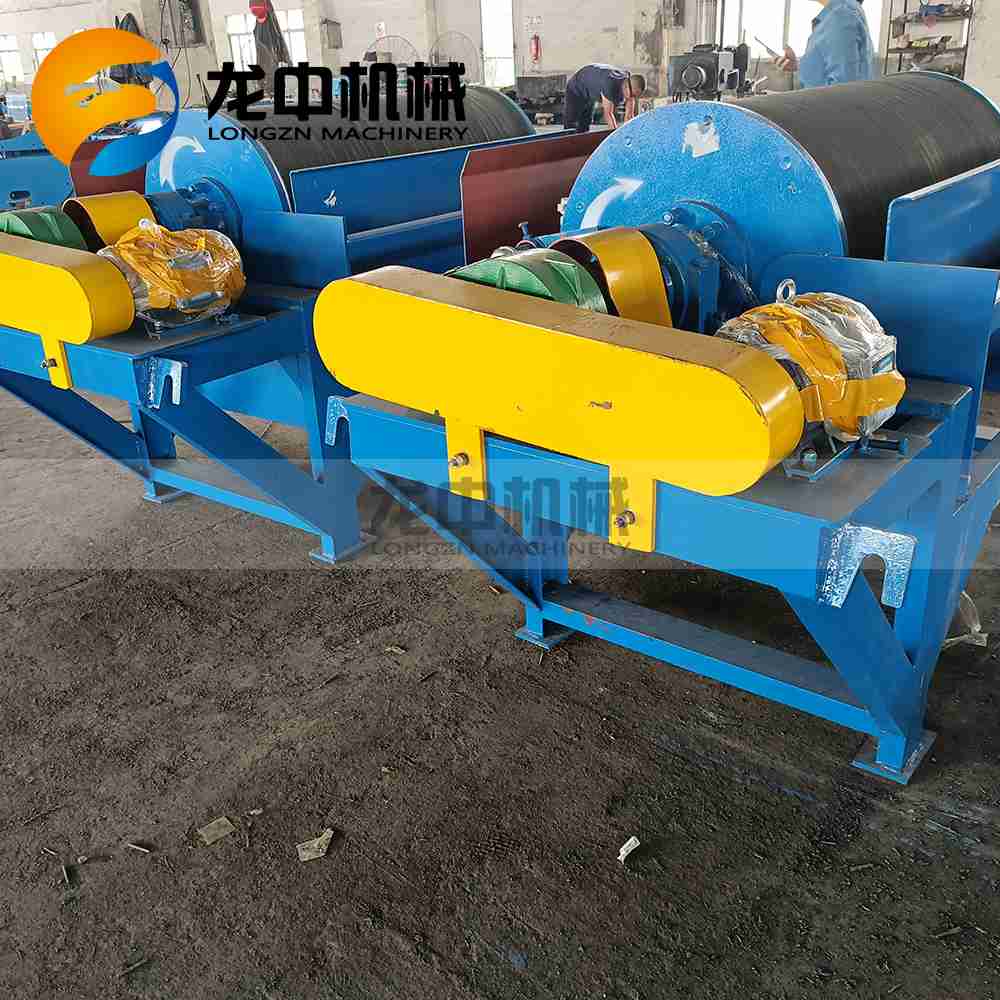

Wet Magnetic Separator Product Pictures

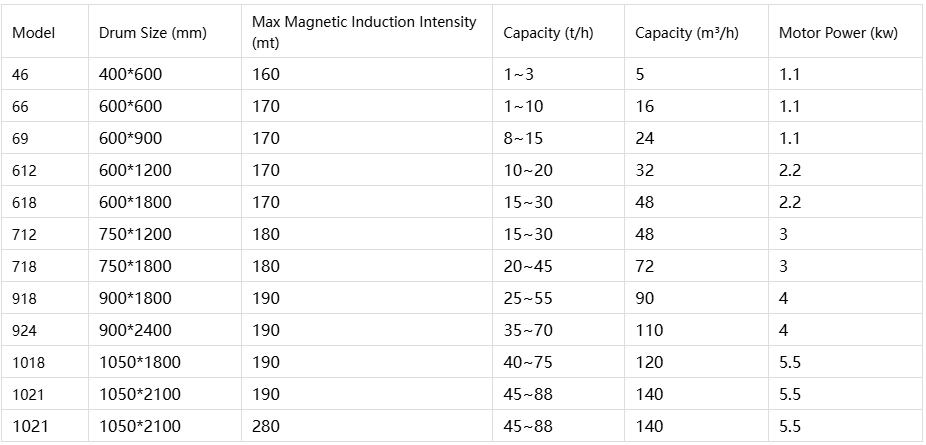

Wet Magnetic Separator Main Technical Parameters

Model	Drum Size (mm)	Max Magnetic Induction Intensity (mt)	Capacity (t/h)	Capacity (m³/h)	Motor Power (kw)
46	400*600	160	1~3	5	1.1
66	600*600	170	1~10	16	1.1
69	600*900	170	8~15	24	1.1
612	600*1200	Hot Tags: JG30GLT LPG Forklift --> Previous Three Discs Magnetic Separator for Monazite/Tin Ore/Tungsten Sand 最后一页 Next Send Inquiry Your Name: *E-mail: Phone/WhatsApp: Company: Subject: *Content: *Code:   OK
