Rotary scrubber Product Overview:

Rotary scrubber has three functions: scrubbing, cleaning and screening. The maximum feed size can reach 200 mm. It mainly carries out preliminary cleaning for raw ore.

Rotary scrubber Working Principle:

The slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the target mineral is released. The material is then screened through

the rotating screen and waste is ejected. The screened material is then passed on to the concentrating modules for upgrading.

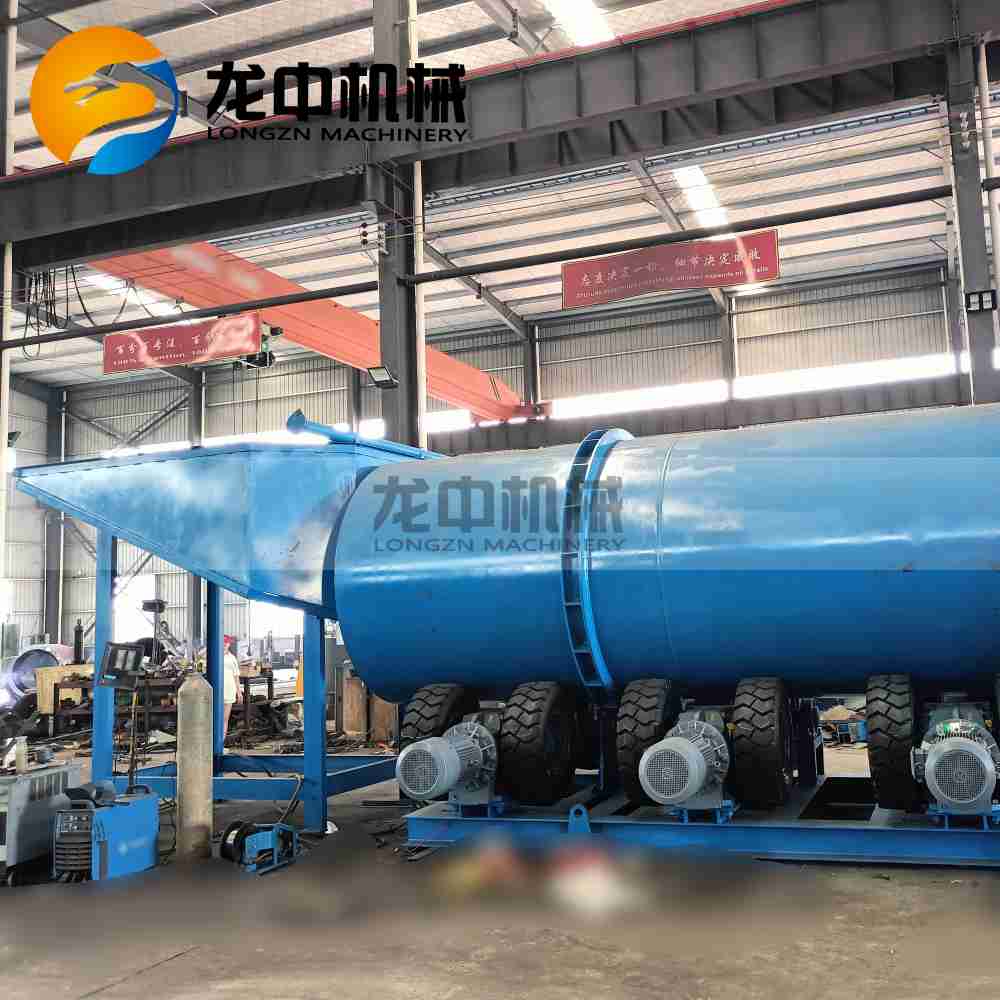

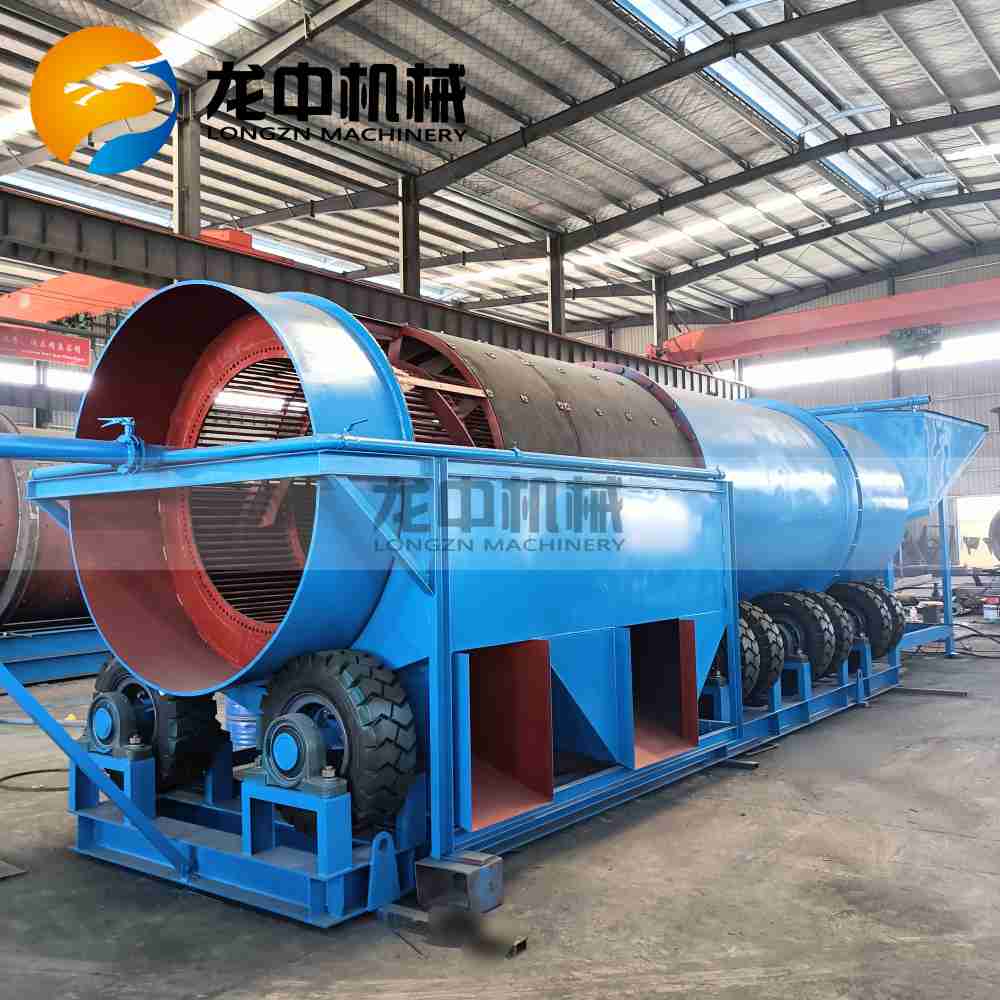

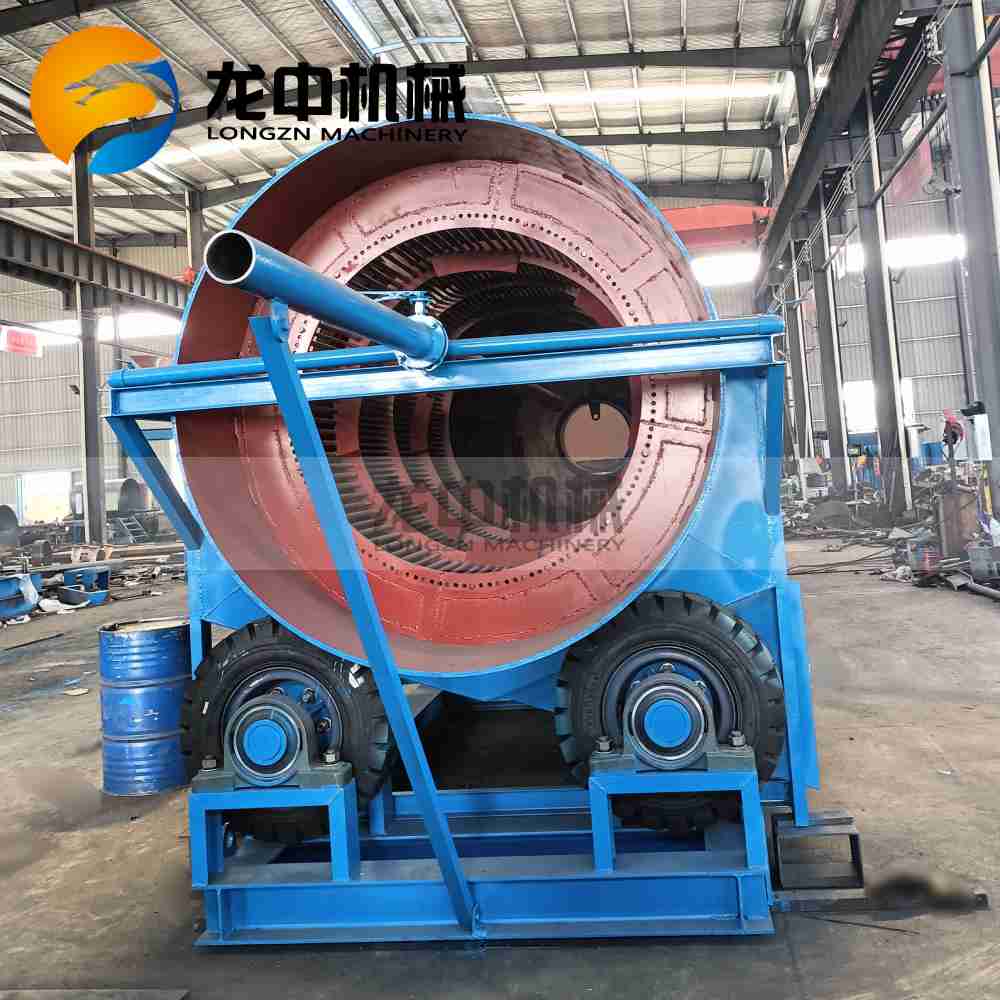

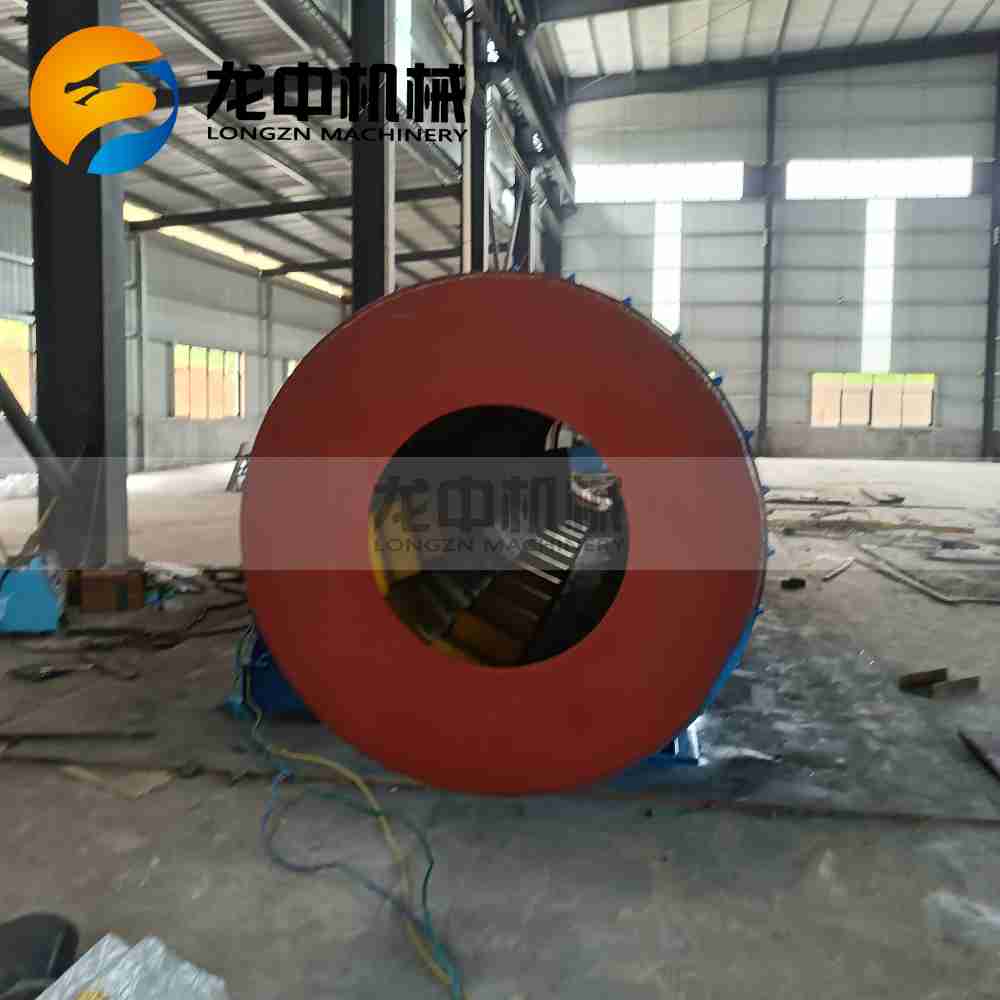

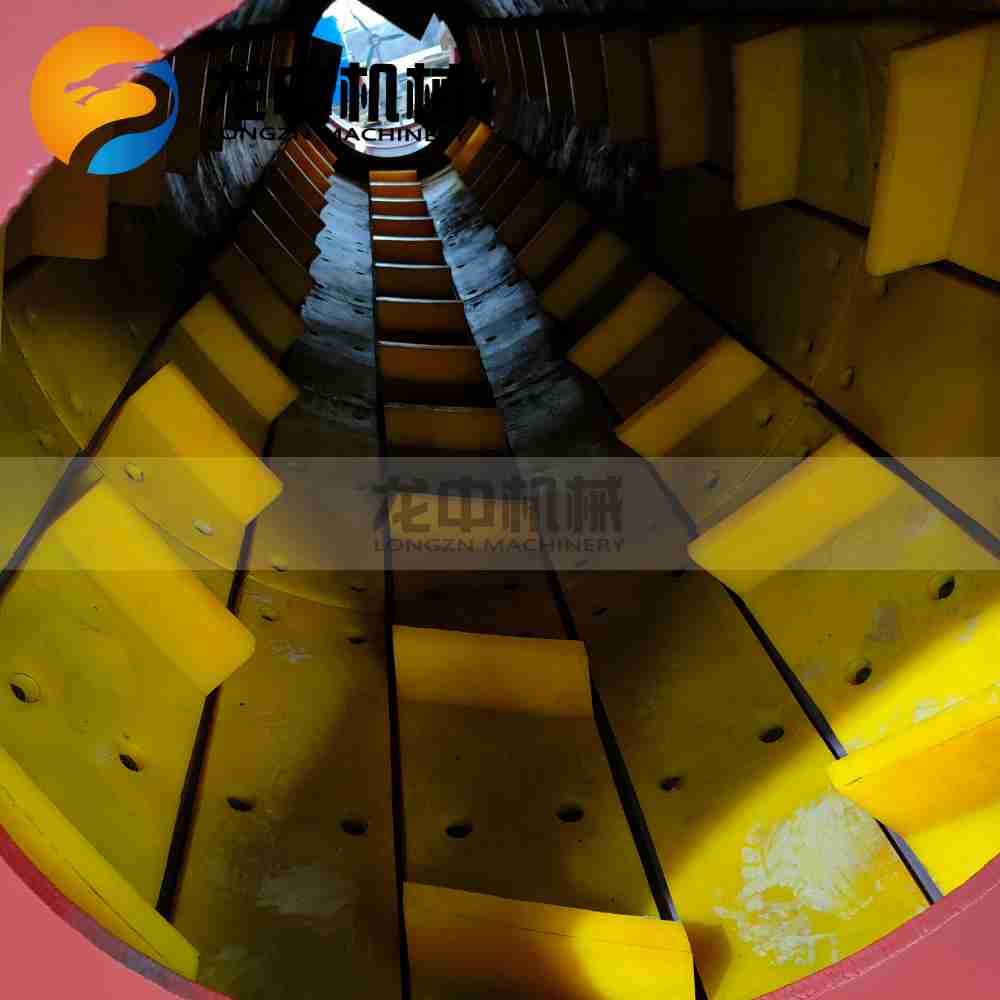

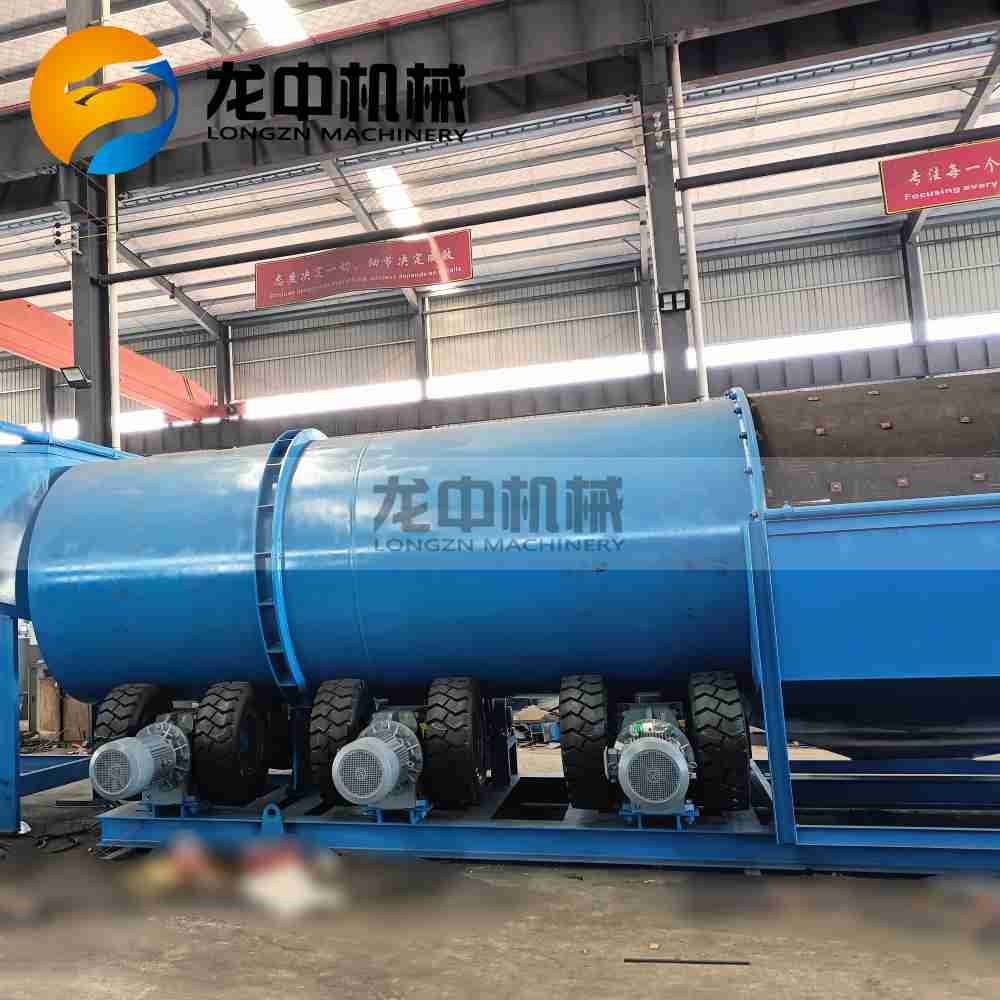

Rotary scrubber Product Pictures:

rotary scrubber 2.jpg

rotary scrubber 3.jpg rotary scrubber 16.jpg

rotary scrubber 7.jpg

Technical Parameters
Model	Drum Size (mm)	Screen size (mm)	Rotation speed (r/min)	Feeding size (mm)	Water Consumption (m3/h)	Capacity (T/h)	Power (Kw)
RXT1030	Φ1000×3000	≤20	27.9	≤80	1	40	15
RXT1136	Φ1100×3600	≤25	27.6	≤80	1.2	65	15
RXT1230	Φ1200×3000	≤25	27.6	≤100	1.3	70	22
RXT1430	Φ1400×3000	≤25	27.6	≤100	1.5	80	22
RXT1545	Φ1500×4500	≤25	21	≤160	1.7	120	30
RXT 2265	Φ2200×6500	≤50	19	≤230	1.8	180	37
