SawTooth Wave Jig Concentrator Machine

Jig Separator Machine Product Description:

Jig machine is one of the relative new methods for gravity concentration. As a rougher or cleaner device,

it is widely applied on the separation of gold, tin, tungsten, titanium, hematite, coal and other minerals

due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.

Jig Separator Machine Working Principle:

Diamond Mining Machinery need water to work, and it loosens materials in vertical alternative water-flows, and

it forms different layers of materials of different densities and discharges both layers from up and down discharging

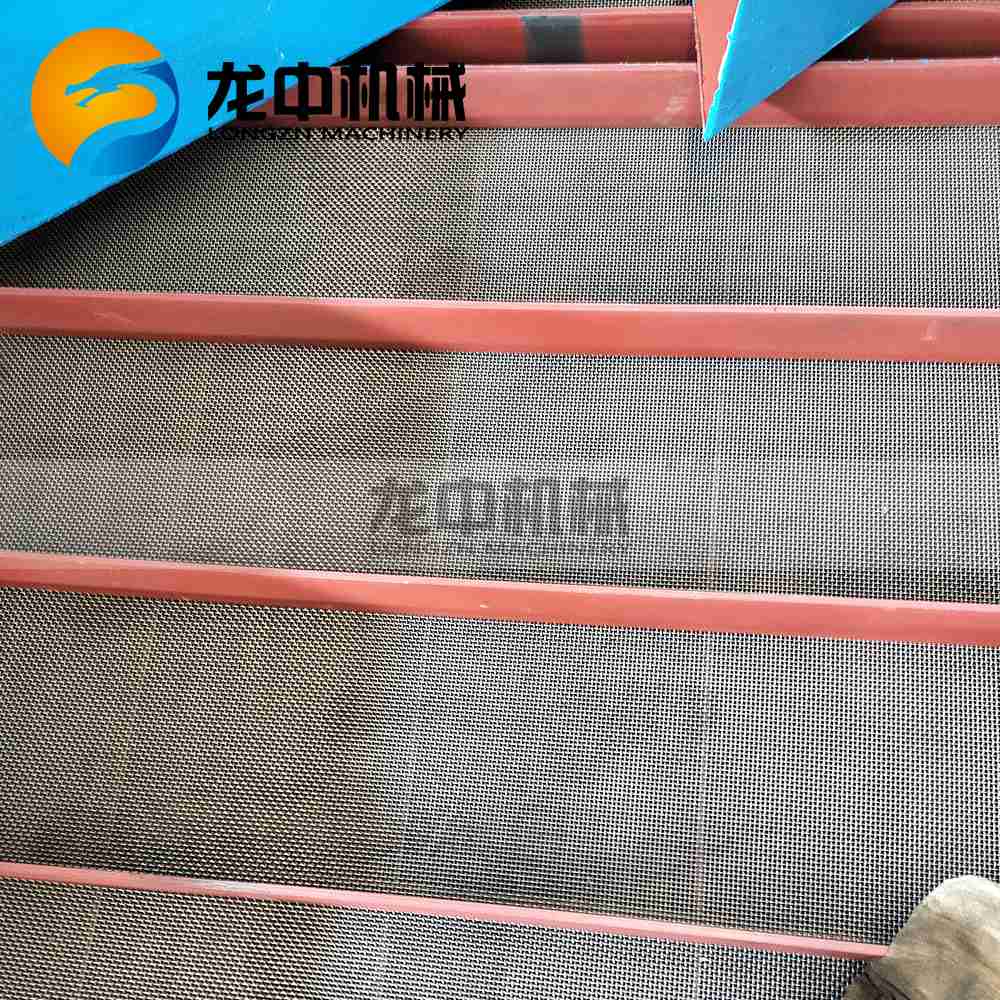

ports separately. The basic composition of jigger is jigging chambers, also called jigging boxes, and there are screens

in each chamber.

Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative water-flows.

Layers will be formed because of density difference of materials. The minerals with small density will be in the up layer and

will flow together with the up pulp flow while material with bigger density will be in the down layer and will discharged

from the down discharging port as jigging concentrate.

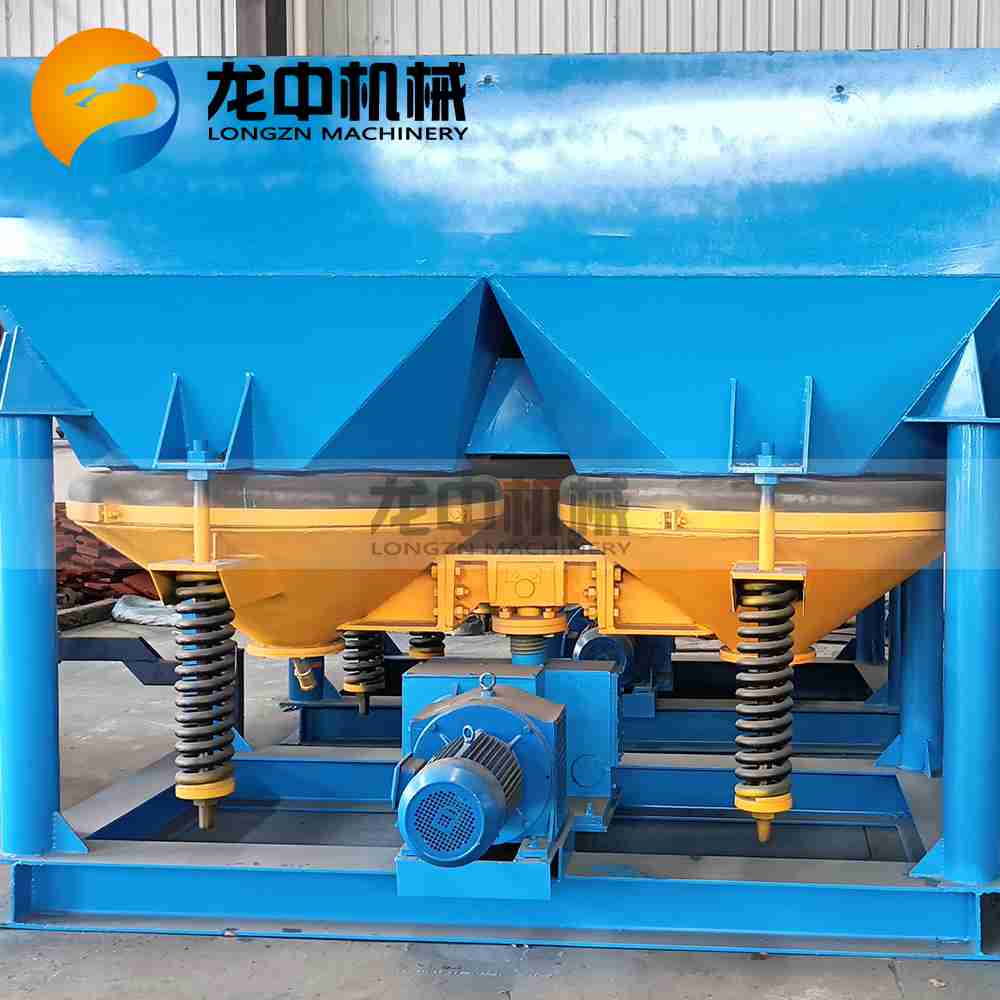

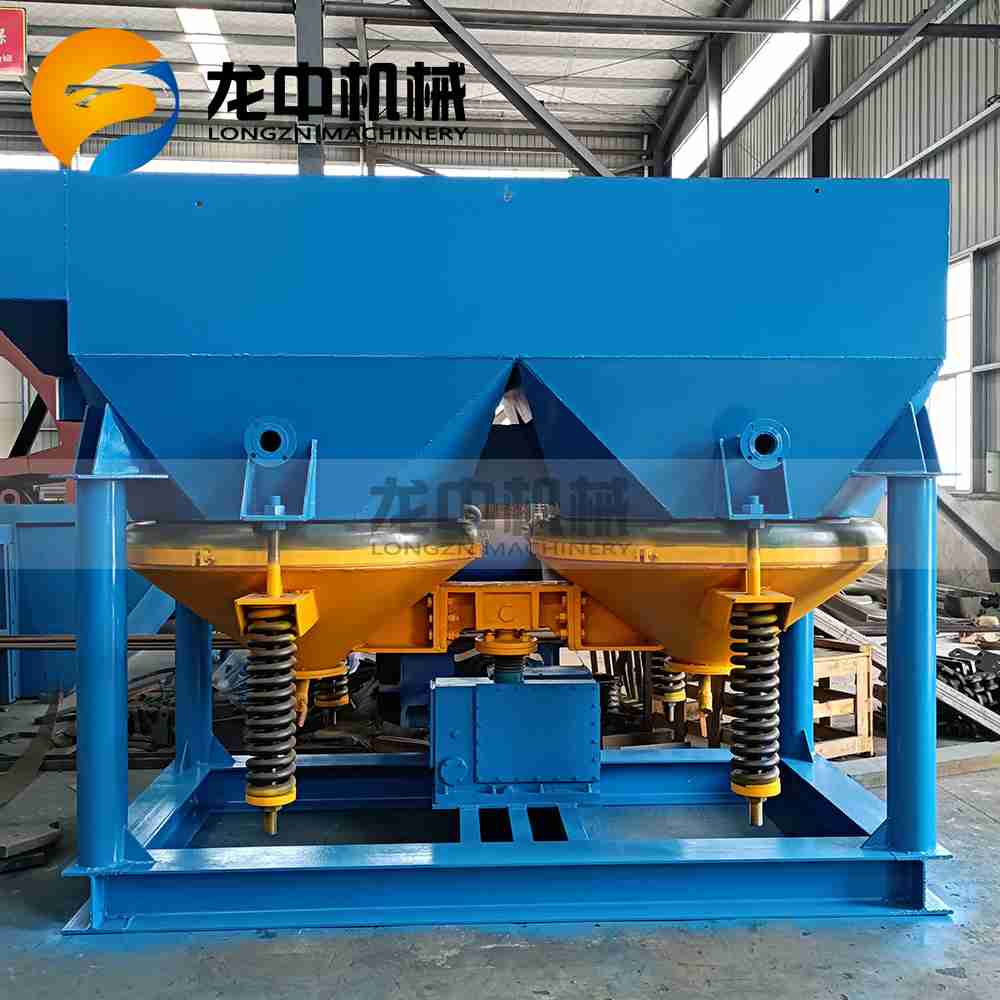

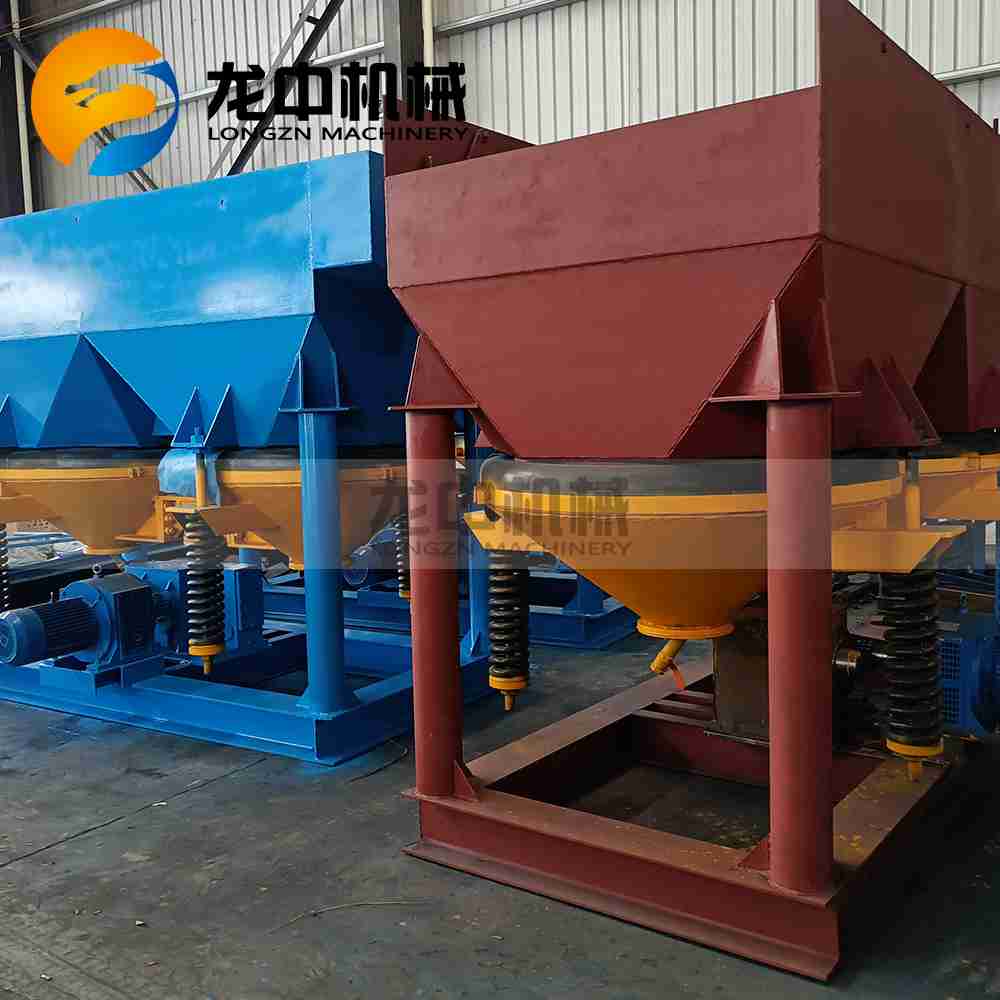

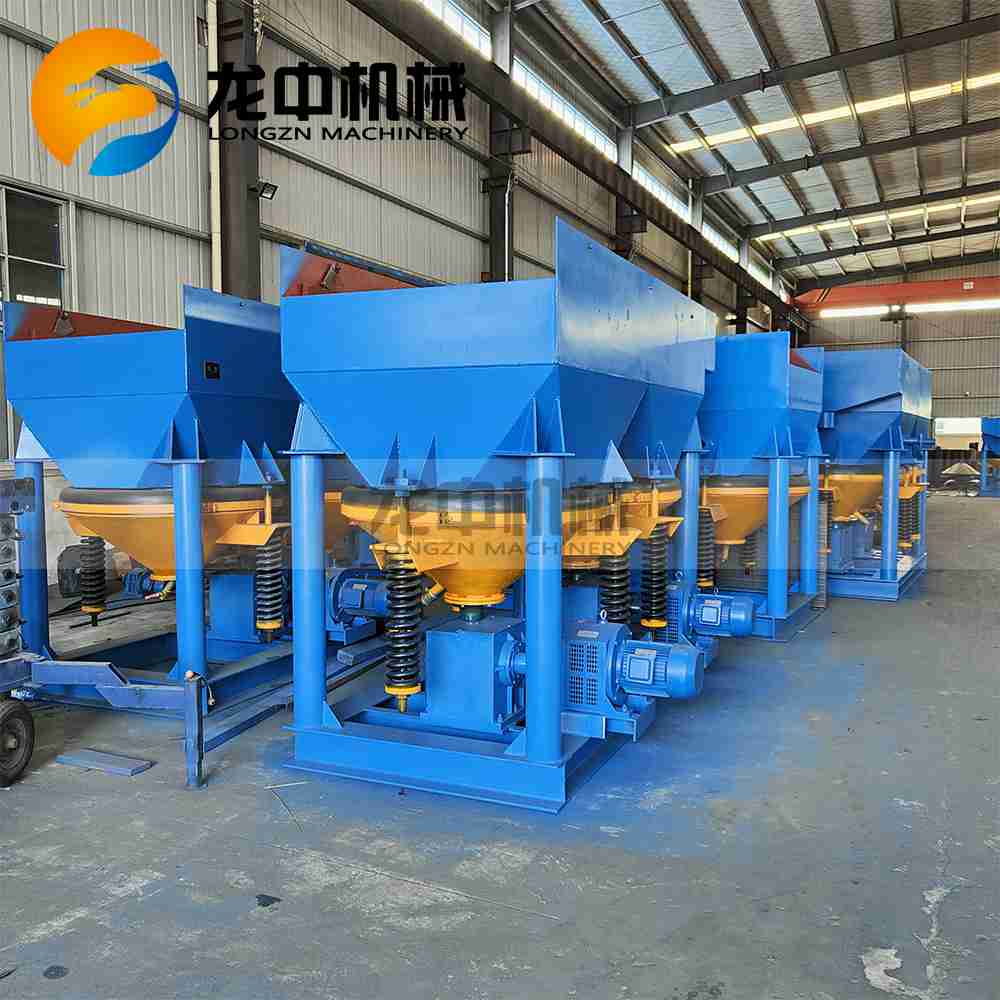

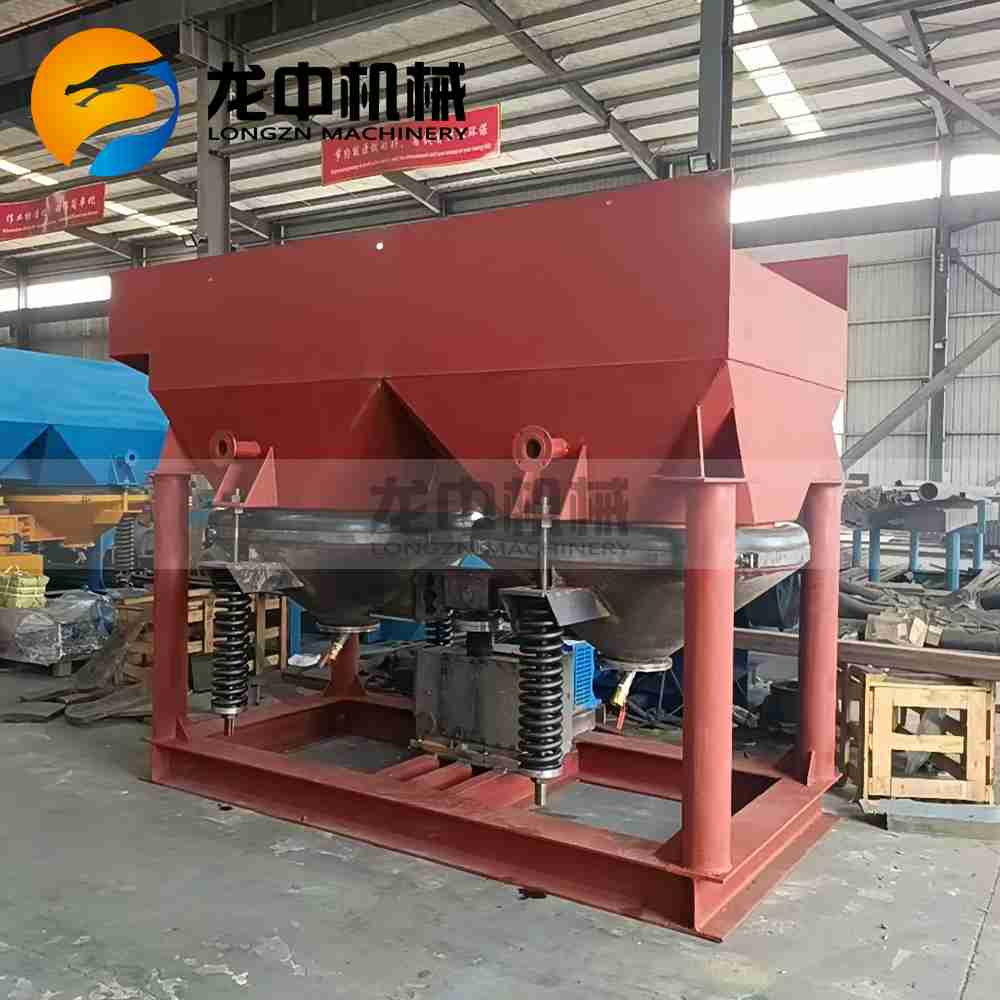

Jig Separator Machine Pictures
