Product Description
Gold Centrifuge Concentrator is a new type of gravity concentration equipment for concentrating gold and other high density minerals.
Gold Centrifuge Concentrator is kind centrifugal concentration equipment. It can be used not only for placer gold mining,
but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
Working Principle
Gold centrifugal separator apply centrifugal force to separate particles according to their size, shape, density by rotor speed.
The hollow shaft of this equipment can be driven by electrical motor transmission part through belt driving, making the rotation
inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe,
and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of
rotation inner sleeve, and the light mineral will be discharged through the tailing’s launder. After one shift work and stop running,
the concentrate will be discharged through the concentrate discharge outlet.

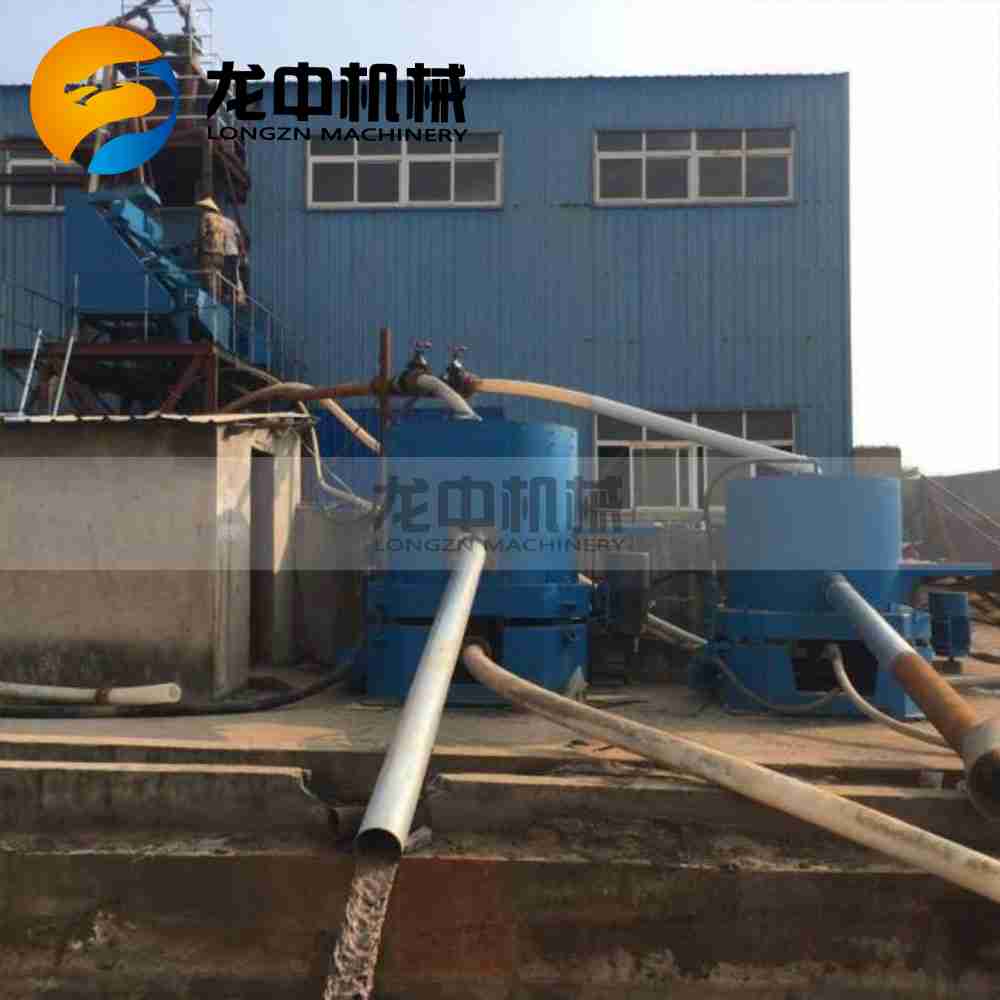

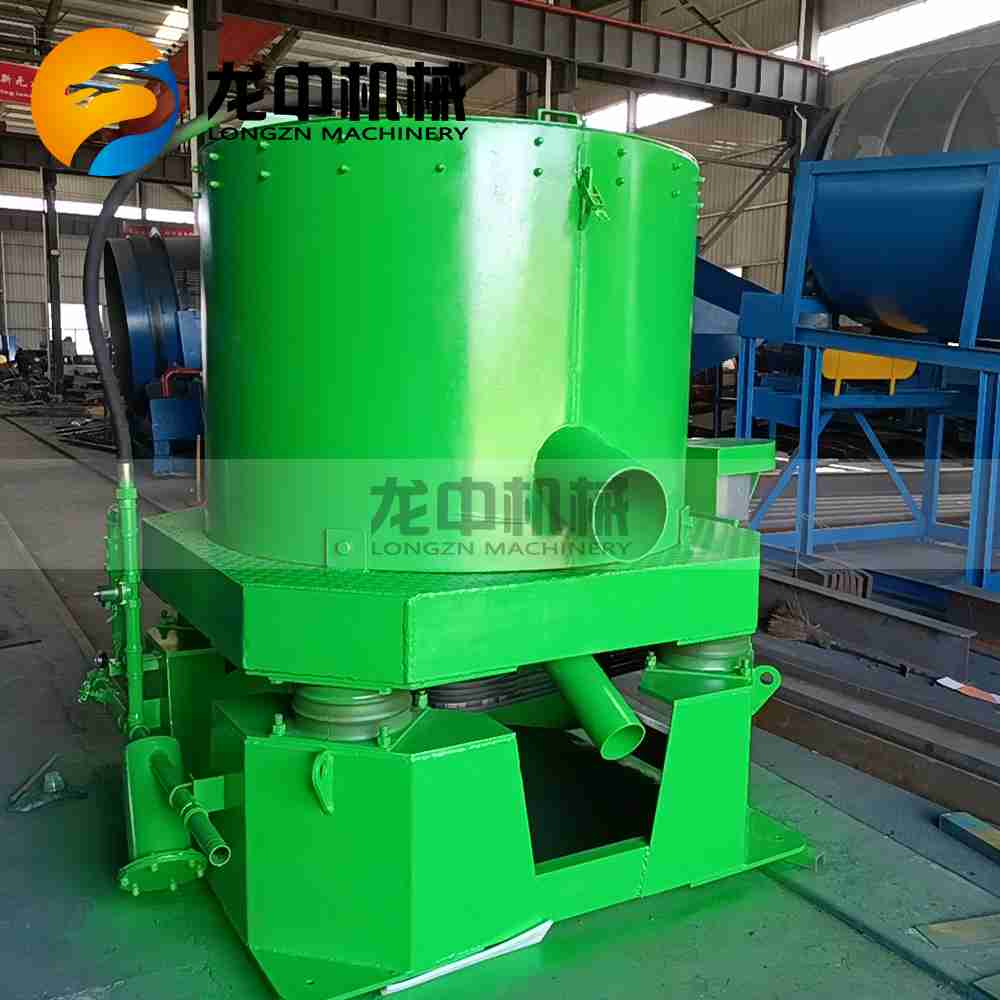

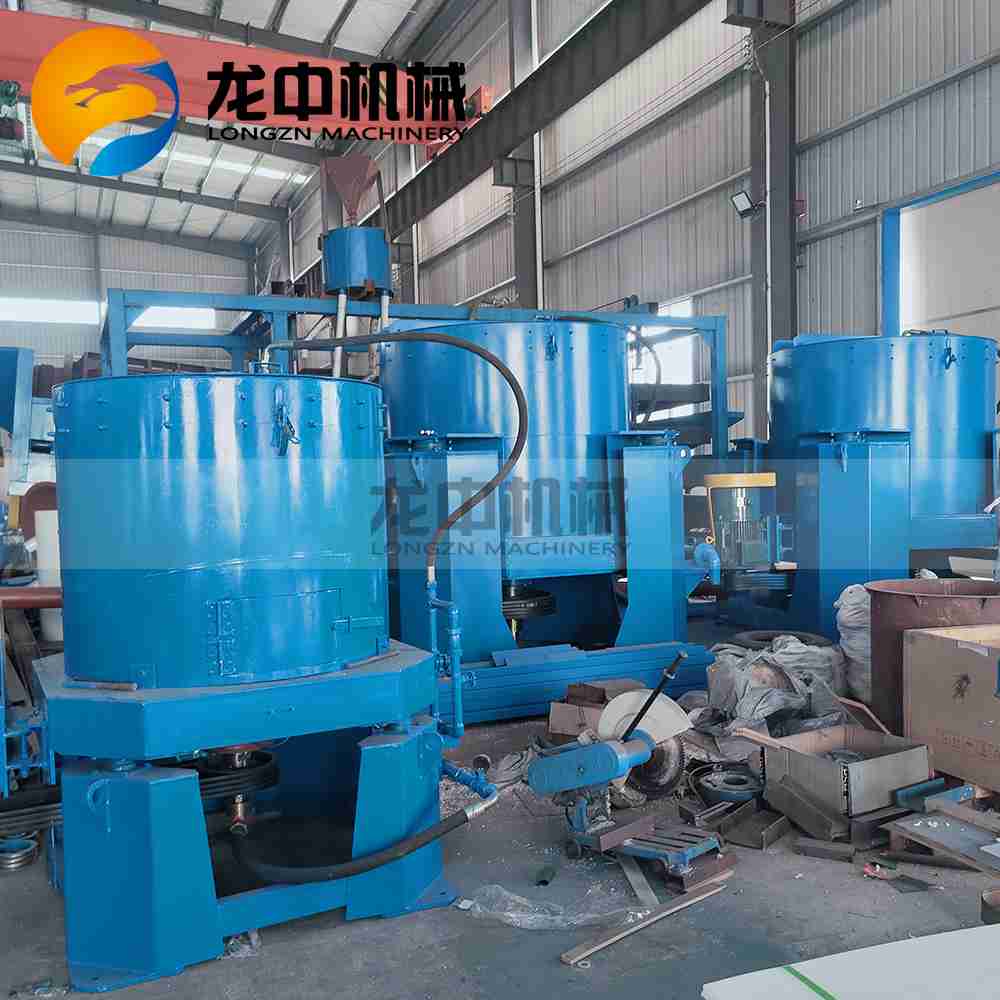

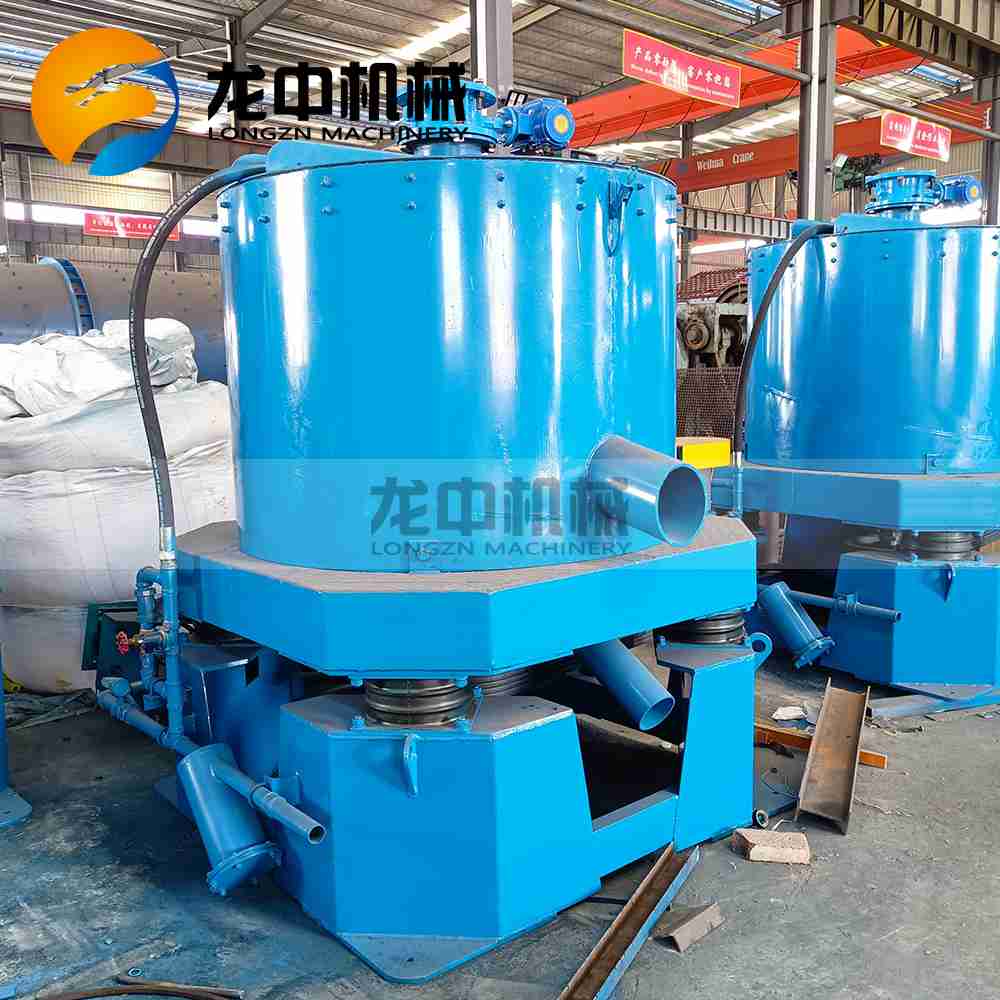

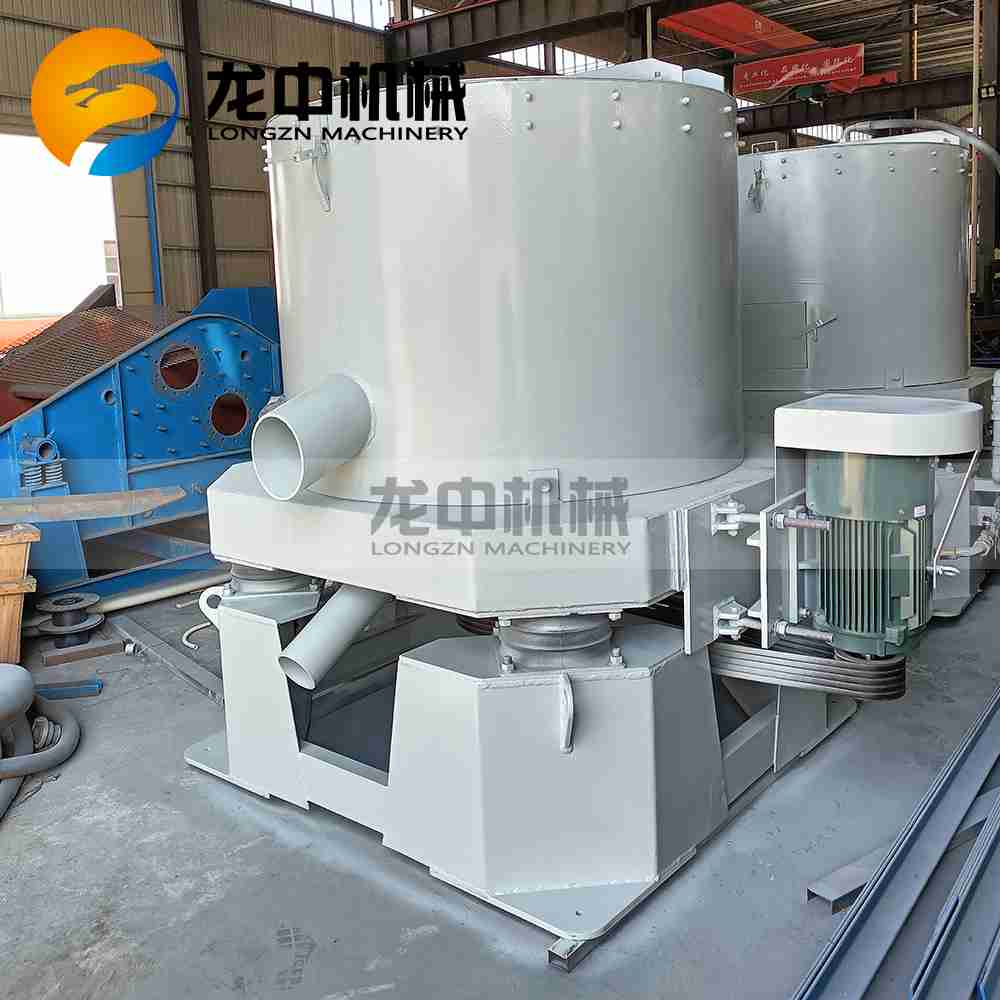

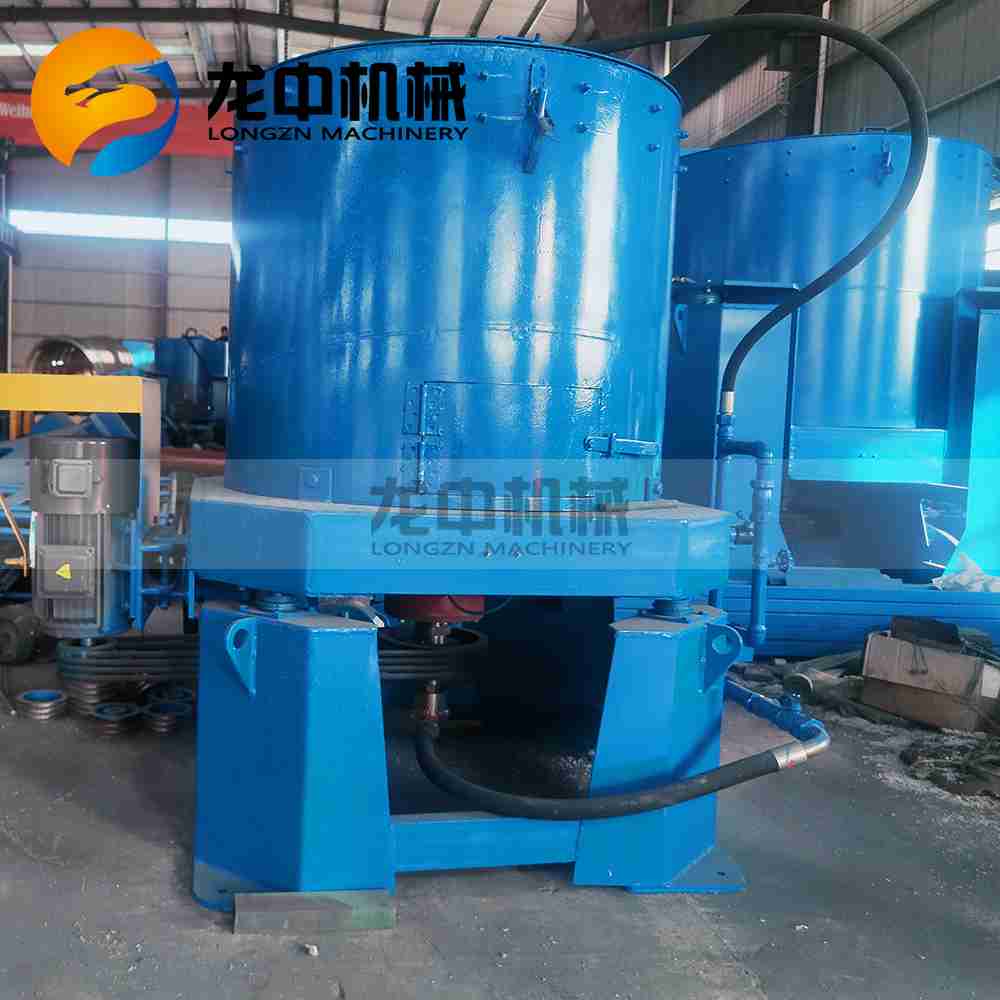

Product Pictures
Technical Parameters | |||||
Model | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 |
Capacity(t/h) | 0-0.6 | 2-3 | 8-12 | 40-45 | 80-120 |
Fluidization Water Required(m³/h) | 2-3 | 3-5 | 7-10 | 30-36 | 60-80 |
Slurry Water Required(m³/h) | 1.5-4 | 5-7 | 8-12 | 40-45 | 70-100 |
Feeding Density(%) | 0-50 | 0-50 | 0-50 | 0-50 | 0-50 |
Feeding Size(mm) | 0-3 | 0-3 | 0-5 | 0-5 | 0-5 |
Concentrate cleaning Up Cycle | Vein Gold:1-3 Hours; Placer Gold:2-6 Hours | ||||
Concentrate Weight(Kg) | 2 | 3-5 | 10-20 | 40-50 | 70-85 |
Power(Kw) | 0.75 | 1.5 | 4 | 11 | 18.5 |
Weight(Kg) | 205 | 380 | 1100 | 2300 | 3200 |
Dimensions(mm) | 914*700*900 | 1160*885*1165 | 1820*1450*1700 | 2476*2032*2018 | 2849*2085*2426 |
