Spiral Chute Product Description
Spiral concentrator is the best concentrating equipment, especially for concentrating sand ore in beach, river side, seashore and stream.
The product is made of the fiberglass lined with wear-resistant resin and emery. it is the domestic advanced level, the new highly effective equipment,
it has been widely used in to enrich the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium,
gold, coal, monazite, rutile, zircon, other low-grade ores or non-metallic minerals which have a enough specific gravity difference.
Spiral Chute Product Features
1.Reasonable structure and small occupation area.
2. High recovery, high efficiency, and precise separation.
3. Light in weight, rust and corrosion resistant.
4. Simple installation and Minimal maintenance requirements.
5. Low operating cost and long operating life.
6. Reliable running with minimal operator attention.
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.

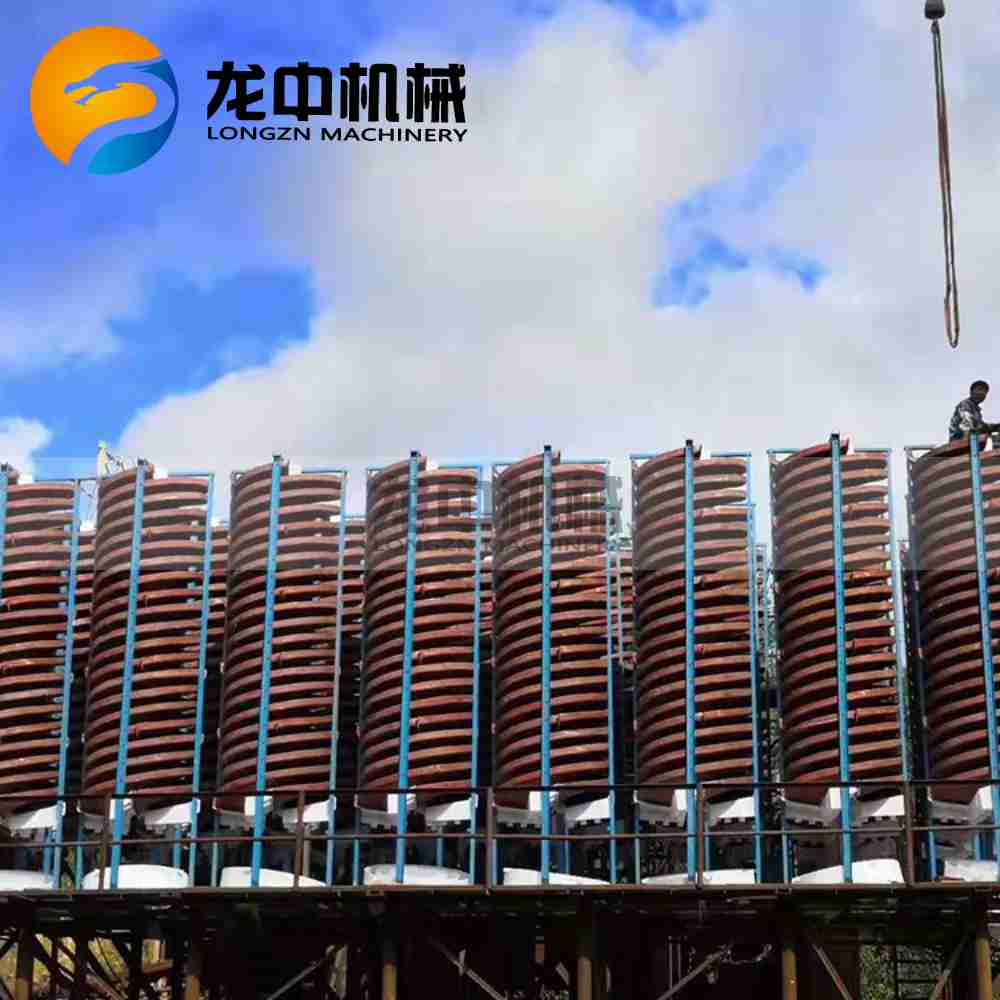

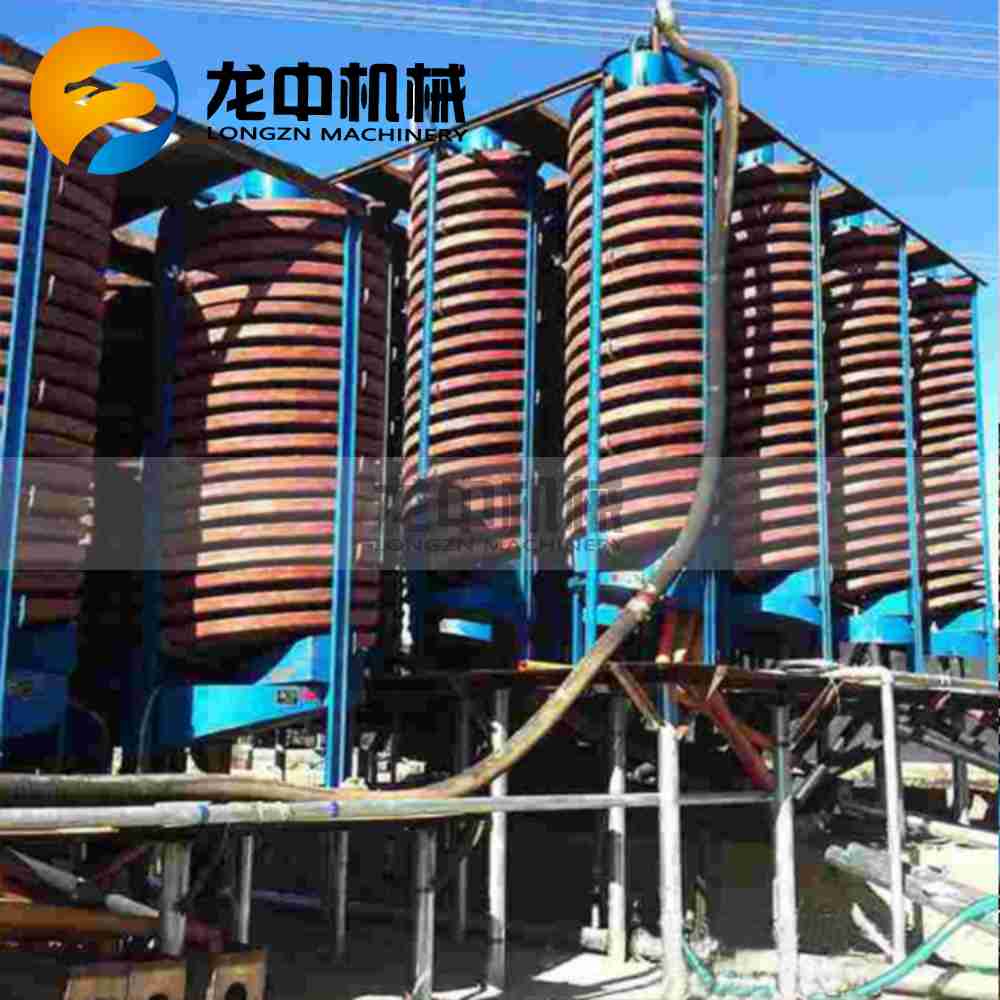

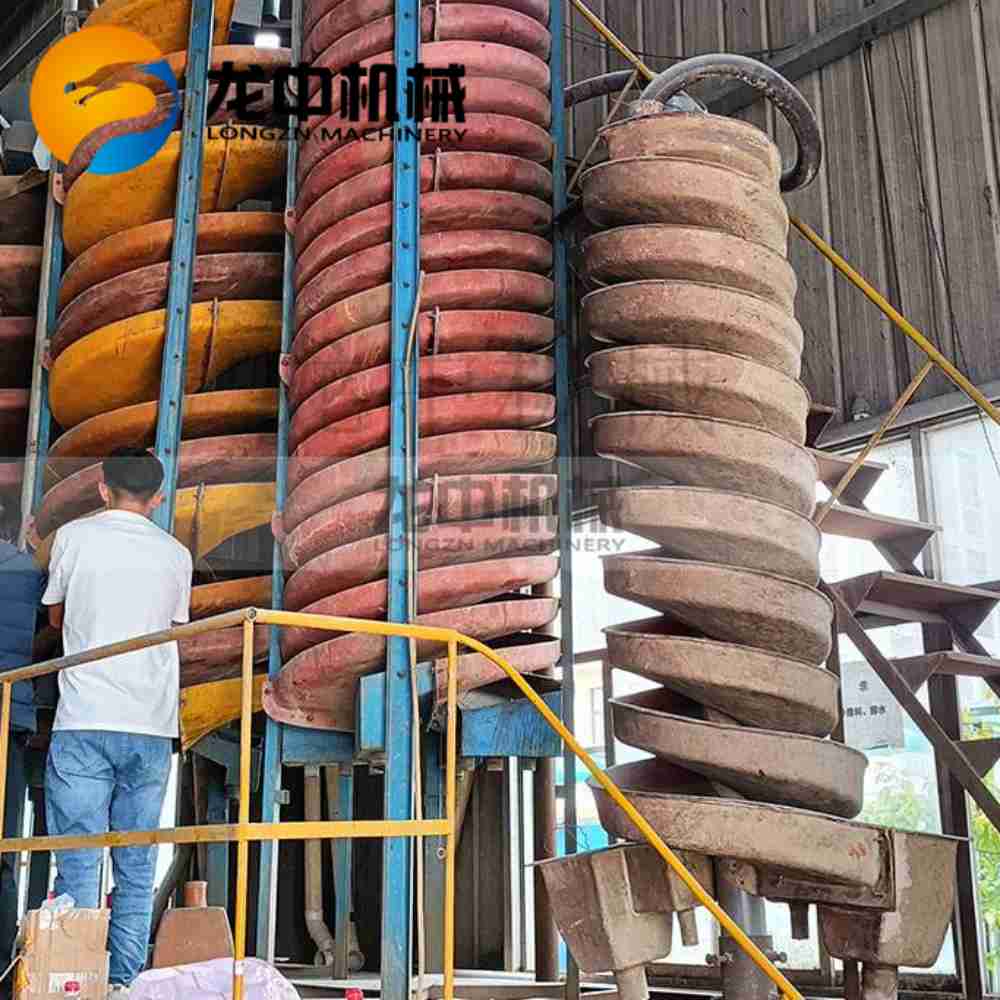

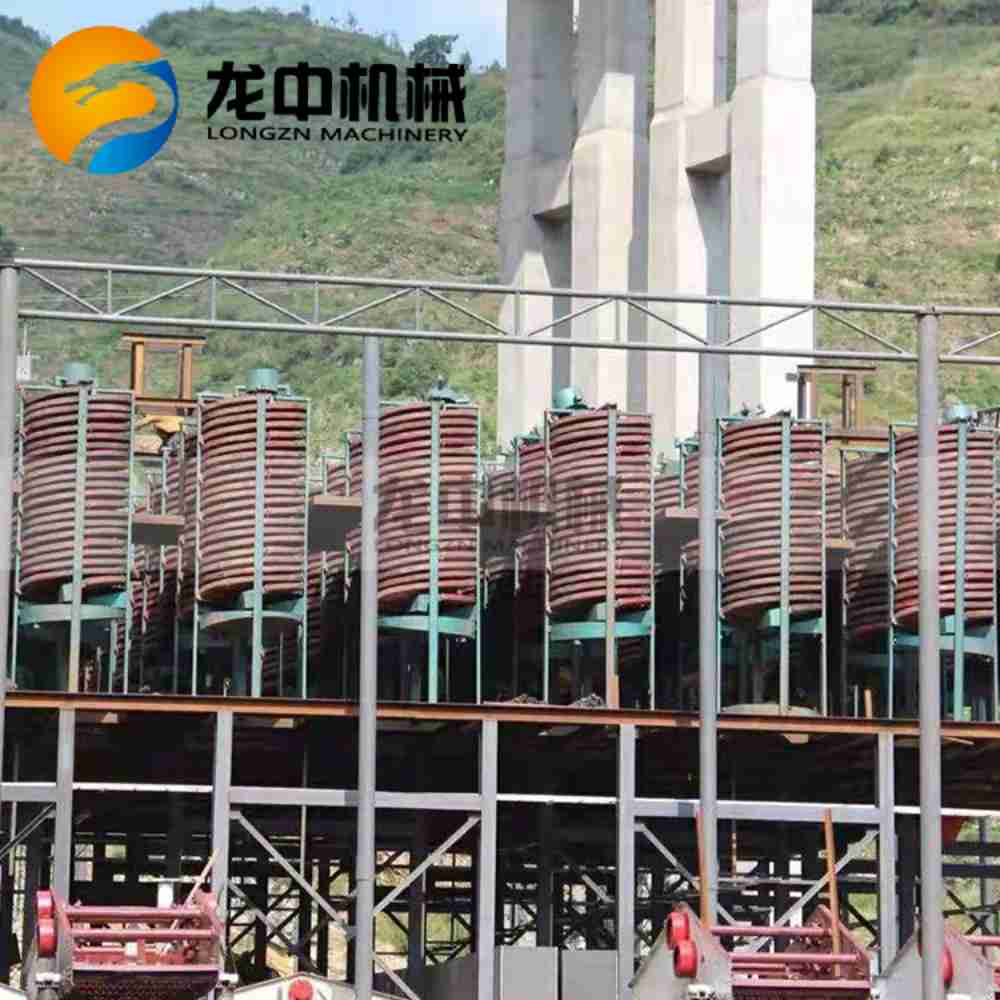

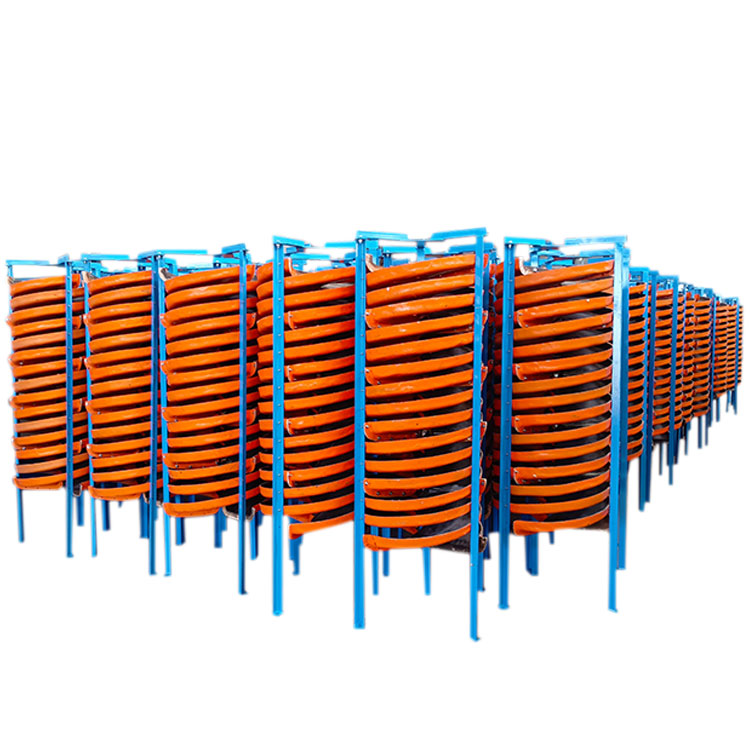

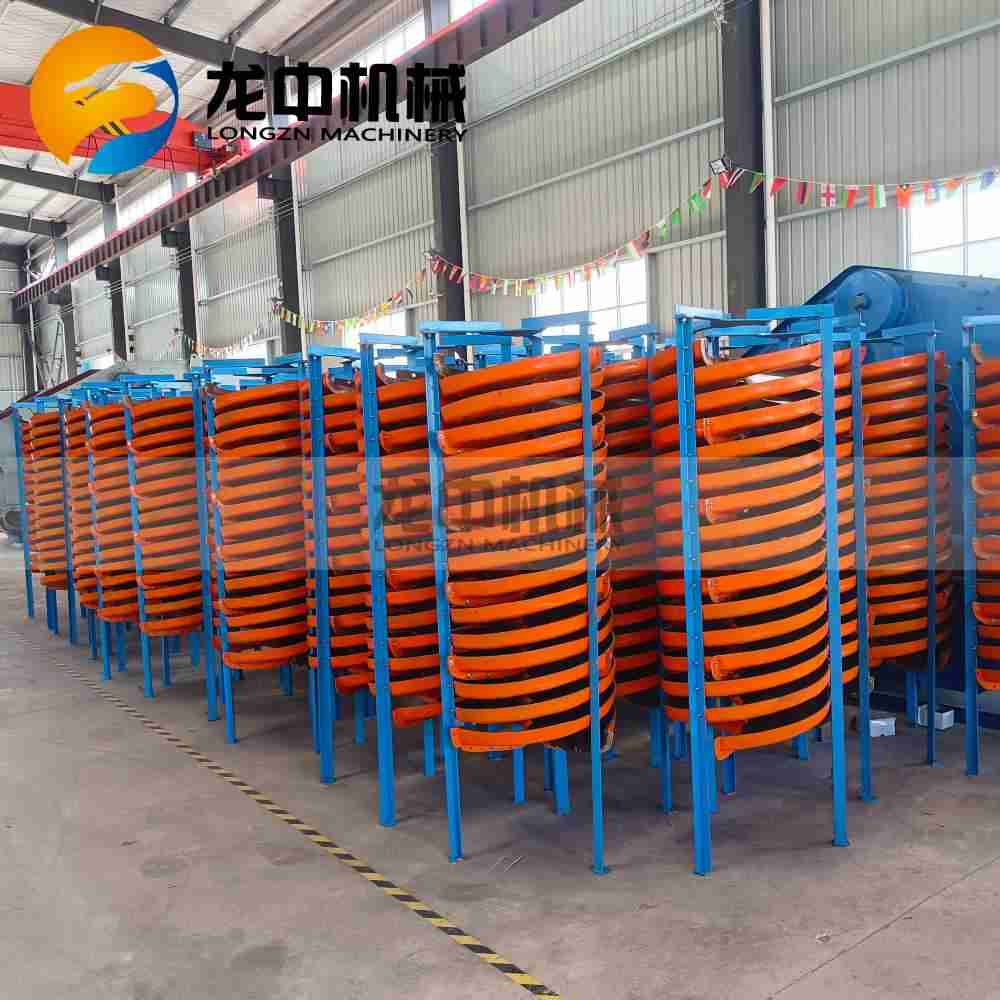

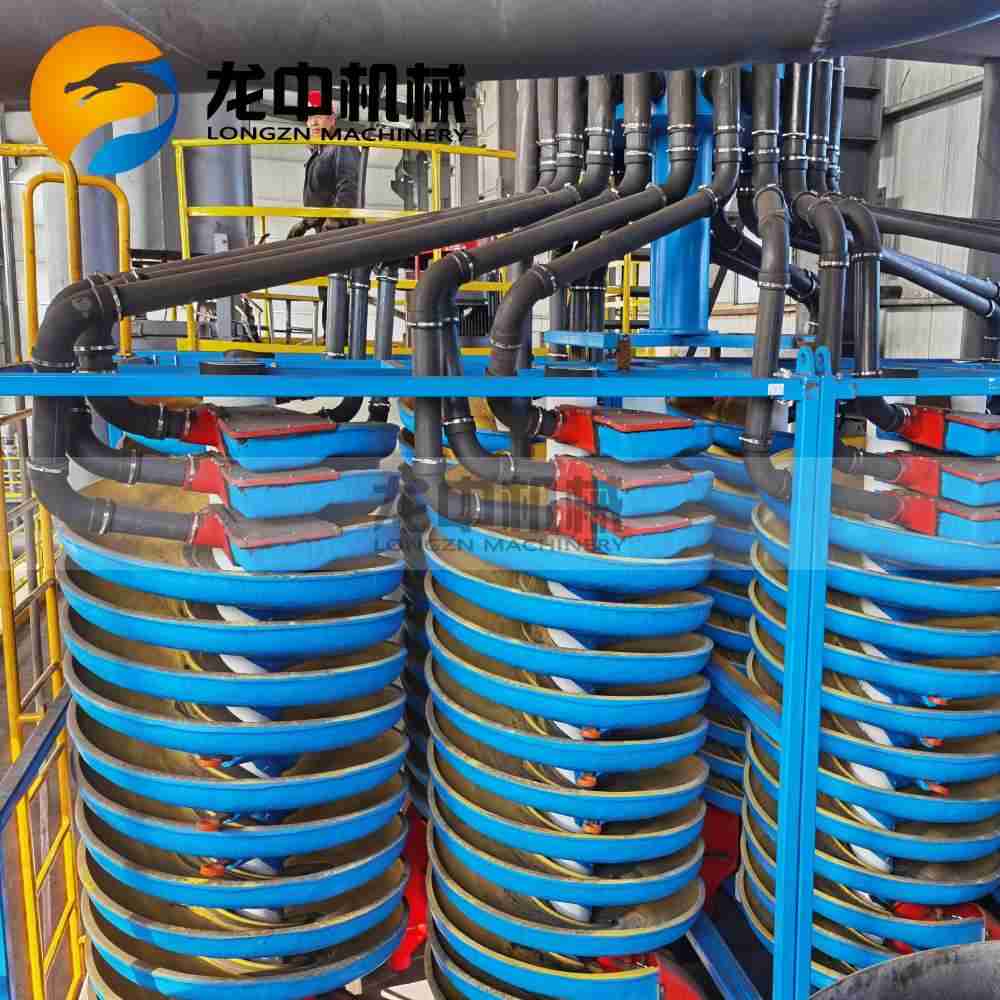

Spiral Chute Product Pictures
Product Paramenters
| Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 |
| Spiral Diameter(mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 |
| Spiral Pitch(mm) | 1200 | 800/680/540 | 720/540/360 | 660/540/400 | 450/360/270 | 240/180 |
| Starts | 3 | 4 | 4 | 4 | 2 | 2 |
| Feeding Size(mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 |
| Feeding Denstiy(%) | 20-45 | 30-60 | 25-35 | 25-55 | 25-55 | 25-55 |
| Capacity(t/h) | 15-40 | 6-8 | 4-6 | 2-3 | 0.4-0.8 | 0.15-0.2 |
| Lenth(mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 |
| Width(mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 |
| Height(mm) | 6500 | 5230 | 5230 | 4000 | 2600 | 1500 |
| Weight(kg) | 1100 | 800 | 600 | 400 | 150 | 50 |
